Home //Dome Cameras // CP-USC-DC51PL3C 5MP IR Dome Camera - 30Mtr.
CP-USC-DC51PL3C 5MP IR Dome Camera - 30Mtr.(excl. of all taxes)
2 Reviews
CP PLUS
Check delivery
₹1,36518% GST will be applied at checkout
₹3,29959% Off192In-Stock
Available offers
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
Specifications
| Image Sensor | 1/2.7” 5MP PS CMOS Image Sensor (0.9407 cm) |
| Minimum Illumination | 0.02 Lux/F2.0, 30 IRE, 0 Lux IR on |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Shutter Speed | PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| White Balance | Auto, manual |
| Lens Mount | M12 |
| Gain Control (AGC) | Auto |
| Max. Aperture | F2.0 |
| Lens | 3.6mm Fixed Lens (2.8mm Optional) |
| Close Focus Distance | Close Focus Distance |
| DORI Distance | Lens 3.6mm: 80.0m (Detect), 32.0m (Observe), 16.0m (Recognize), 8.0m (Identify) Lens 2.8mm: 56.0m (Detect), 22.4m (Observe), 11.2m (Recognize), 5.6m (Identify) |
| Lens Type | Fixed |
| Angle of View | 3.6 mm: 104° × 88° × 46°, 2.8 mm: 125° × 106° × 56° |
| Back Light Compensation | BLC, HLC, DWDR |
| Resolution | 5M (2880×1620), 4M (2560×1440), 2M (1920×1080), 960H (960 × 576/960 × 480) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Frame Rate | CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps , NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: 960H |
| Noise Reduction | 2D DNR |
| Iris Control | Fixed |
| Audio | Built-in Mic |
| Privacy Mask | Off/On (8 areas, rectangle) |
| Audio Interface | Audio Interface |
| Day/Night | Auto (ICR)/ Manua |
| Mirror Function | Support |
| IR Control | Auto, Manual |
| IR | IR Range of 30 Mtr. |
| Smart IR | Support |
| Operating Humidity | <95% (RH), non-condensing |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Power Source | 12 VDC ± 30% |
| Power Consumption | Max. 2.7W (12 VDC, IR on) |
| Dimension | 85.4mm × 68.8mm |
| Casing | Plastic |
| Weight | 0.09 kg |
Product Details

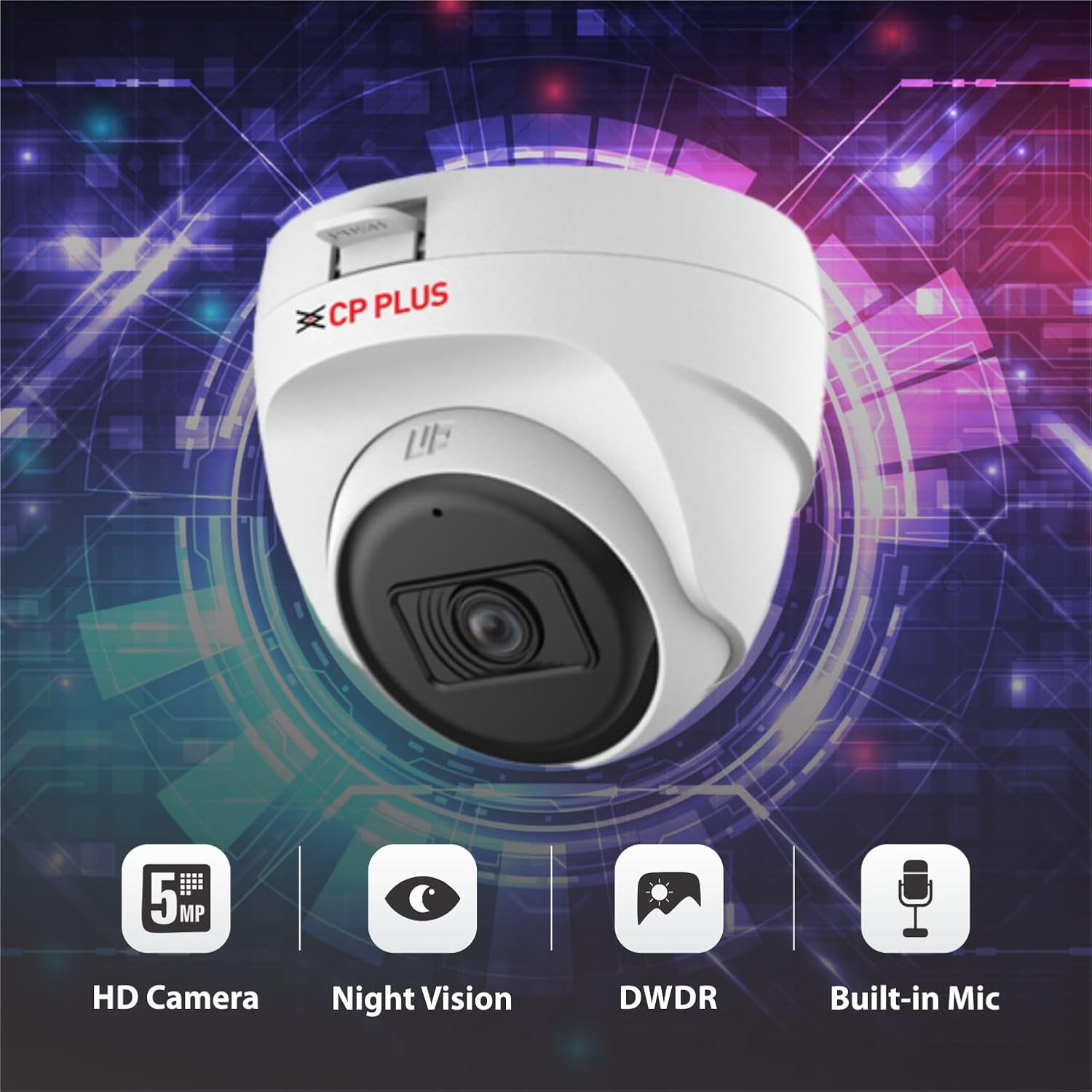

1/2.7” 5MP PS CMOS Image Sensor (0.9407 cm)
DWDR, Day/Night (ICR), 2D DNR, BLC, HLC

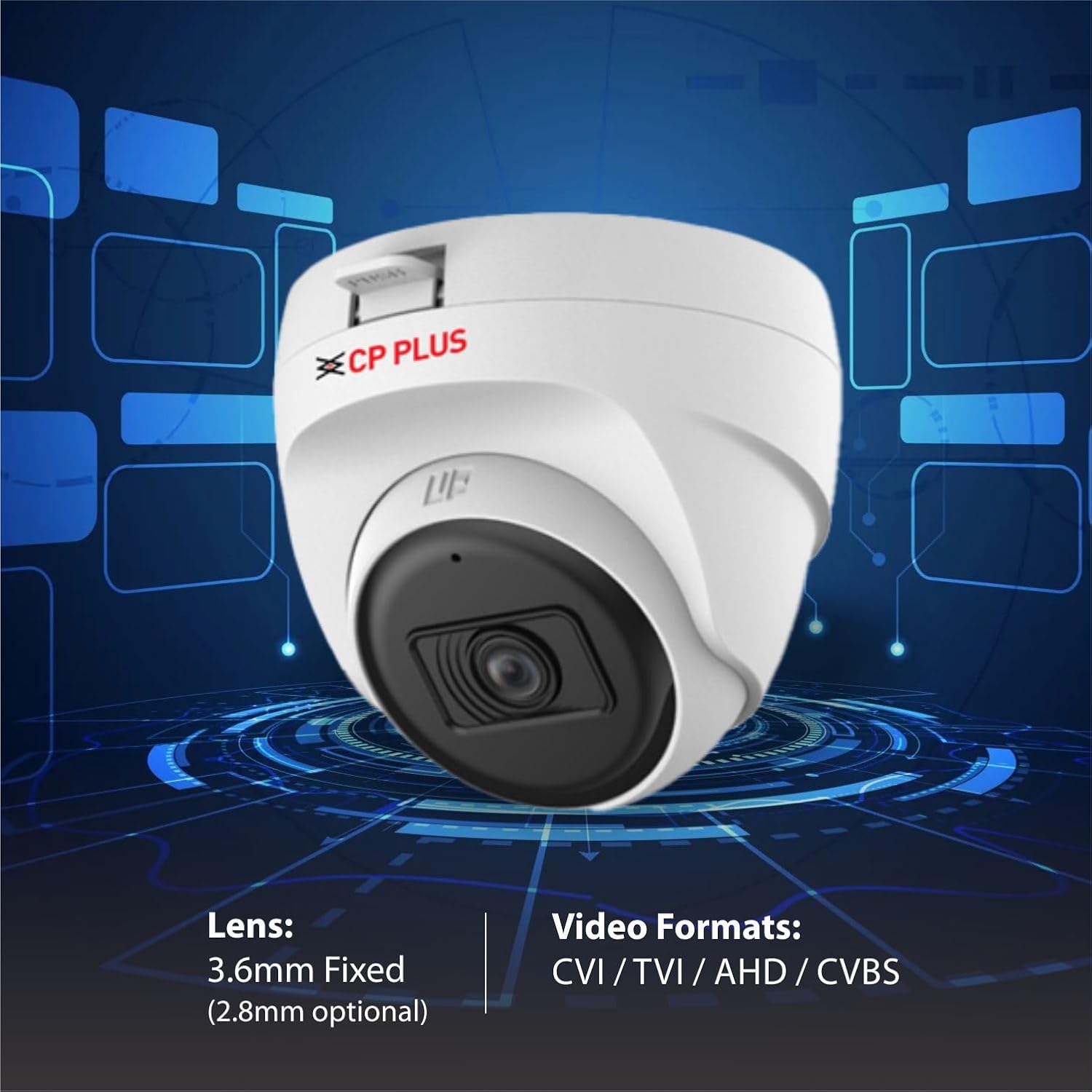

3.6mm Fixed lens (2.8mm Optional)
IR Range of 30 Mtrs., Smart IR
Support Built-in Mic
