CP-Plus DC24PL3C-L 2.4MP HD Dual Light Hybrid Illumax Full Color-On-Motion IR Dome Security Camera | 3.6 mm Fixed Lens | Illumination Range of 30 Mtrs, IP67- CP-URC-DC24PL3C-L(excl. of all taxes)

Camera & Image Sensor

• Image Sensor: 2.4MP Progressive Scan (PS) CMOS Image Sensor.

• Effective Resolution: 1920 × 1080 pixels (Full HD).

• Shutter Speed: PAL: 1/25s–1/100,000s; NTSC: 1/30s–1/100,000s.

• Minimum Illumination: 0.02 Lux @ F2.0 (Color, 30 IRE), 0.002 Lux @ F2.0 (B/W), 0 Lux with IR activated.

• Signal-to-Noise (S/N) Ratio: Greater than 65 dB

Optical Lens Performance

• Lens Options: 3.6mm fixed lens comes standard; 2.8mm and 6mm focal variants are optional.

• Lens Mount & Aperture: M12 mount with a maximum aperture of F2.0.

• Angle of View (3.6mm): Horizontal: 80°, Vertical: 43°, Diagonal: 94°.

• DORI Distance (3.6mm): Detect up to 50m, Observe up to 22m, Recognize up to 11m, Identify up to 5.5m. [1, 2, 3, 4]

Illumination & Night Vision

• Dual Light Layout: Equipped with 2 IR LEDs and 2 Warm Light LEDs.

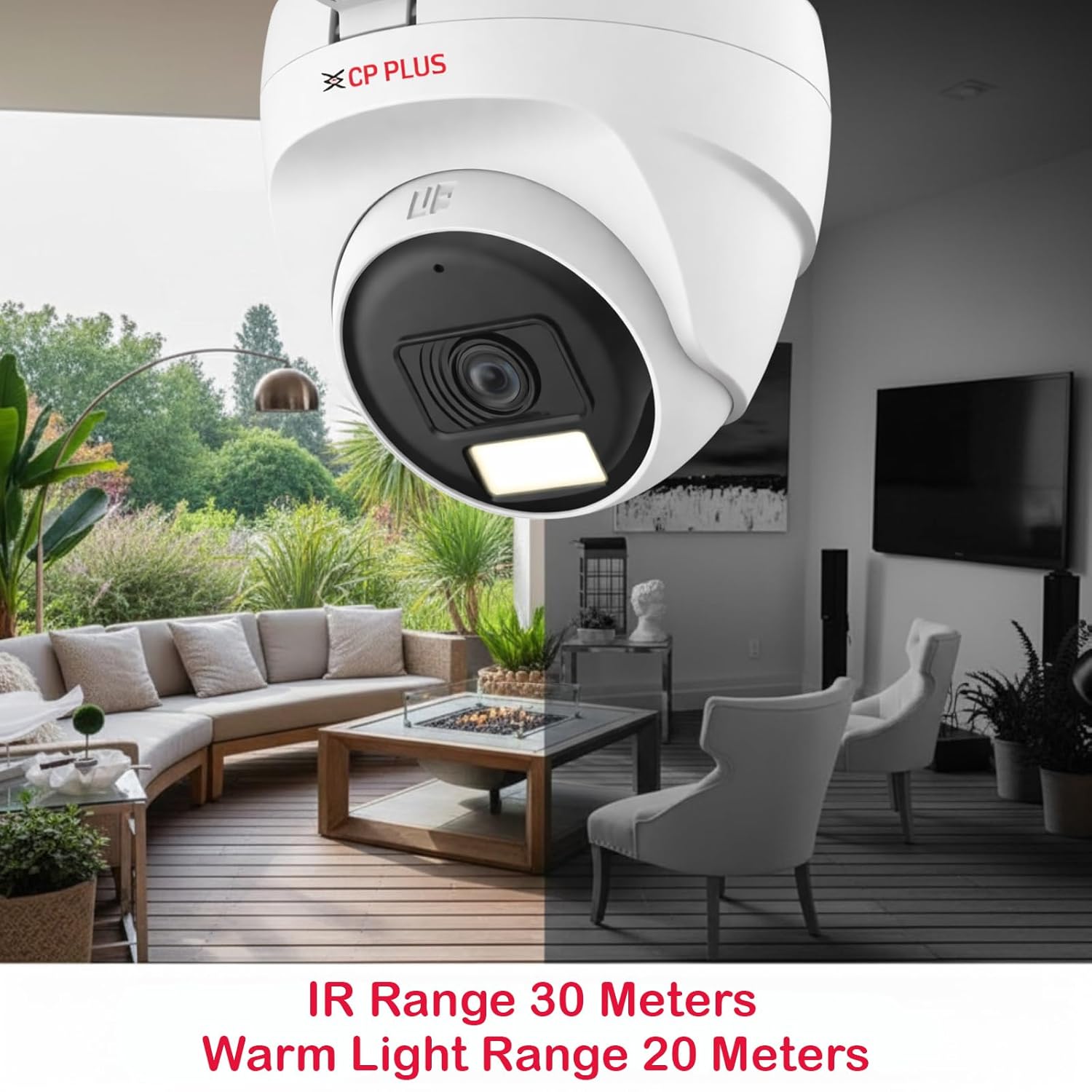

• Infrared (IR) Range: Up to 30 meters for standard black-and-white night vision.

• Warm Light Range: Up to 20 meters for full-colour illumination.

• Night Mode Processing: Smart IR & Warm Light (WL) configuration featuring auto/manual toggling. [1, 3, 4]

Video & Audio Output

• Frame Rates: 1080p @ 25 frames per second (PAL) / 30 frames per second (NTSC).

• Video Output: 4-in-1 switchable BNC port supporting CVI, TVI, AHD, and analog CVBS formats.

• Transmission Control: Integrated OSD menu control managed over a single coaxial cable.

• Audio Features: Built-in microphone for synchronized audio recording. [1, 2, 3, 5]

Image Adjustment Enhancements

• Backlight Performance: Digital Wide Dynamic Range (DWDR), Backlight Compensation (BLC), and Highlight Compensation (HLC).

• Noise Reduction: 2D Digital Noise Reduction (2D DNR).

• White Balance & Gain: Auto/Manual Gain Control (AGC) with Area White Balance settings.

• Privacy Masking: Configurable On/Off zones supporting up to 8 rectangular regions.

Mechanical & Environmental Specs

• Adjustment Range: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°.

• Casing Material: Durable, lightweight plastic housing built primarily for indoor mounting.

• Operating Temperature: Ranges reliably from -40°C to +60°C (-40°F to +140°F).

• Power Source: 12V DC (±30% variance tolerated).

• Power Consumption: Maximum of 3.3W when LEDs are fully active.
