Home //IP Dome Camera // CP-UNC-DA41L3C-D-LQ
CP-UNC-DA41L3C-D-LQ(excl. of all taxes)
2 Reviews
CP PLUS
Check delivery
₹3,65718% GST will be applied at checkout
₹4,0009% Off56In-Stock
Available offers
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
Specifications
| Image Sensor | 1/2.9 |
| Effective Pixels | 2688 (H) × 1520 (V) |
| Minimum Illumination | 0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| RAM | 128 MB |
| ROM | 128 MB |
| DORI Distance | 3.6mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) 2.8mm: 64.0 m (Detect), 25.6 m (Observe), 12.8 m (Recognize), 6.4 m (Identify) |
| Lens Type | Fixed-focal |
| Day/Night | Auto(ICR)/Color/B/W |
| Lens | 3.6mm (2.8mm Optional) |
| Warm Light | Warm Light Range of 30 Mtr. |
| Stream Capability | Triple stream |
| Frame Rate | Main stream: 4MP (2688 × 1520)/ (2560 × 1440)@1-25/30fps Sub stream 1: 720P( 1280 × 720) D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps |
| Resolution | 4M (2688 x 1520), 4M (2560 × 1440), 3M (2304 × 1296), 2M (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240) |
| Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Video Format | PAL/NTSC |
| Privacy Mask | 4 areas |
| OSD | Camera title, Date & Time |
| Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, RTMP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| Ethernet | RJ-45 (10/100 Base-T) |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| Audio | Built-in Mic |
| IR Control | Auto, Manual |
| Iris Control | Fixed |
| Alarm Event | Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
| Image Rotation | 4MP only support 0°/180°. 2MP & lower will support 0°/90°180°/270° |
| User/Host | 6 (Total bandwidth: 36 M) |
| Browser | IE, Chrome, Firefox |
| Weatherproof Standard | IP67 |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
| Power Source | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 1.6 W (12 VDC), 2.0 W (PoE) Max. : 3.7 W (12 VDC), 4.7 W (PoE) (H.265 + intelligence on + WDR+ warm light intensity) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Dimensions | 85.5 mm × 109 mm |
| Casing | Metal + Plastic |
| Weight | 250 g |
Product Details
1/2.9" 4MP PS CMOS Image Sensor (0.8758 Centimeters)
Max. 4MP (2688 × 1520)/ (2560 × 1440)@25/30 fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
Support Built-in Mic
3.6mm Lens (2.8mm Optional)
WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

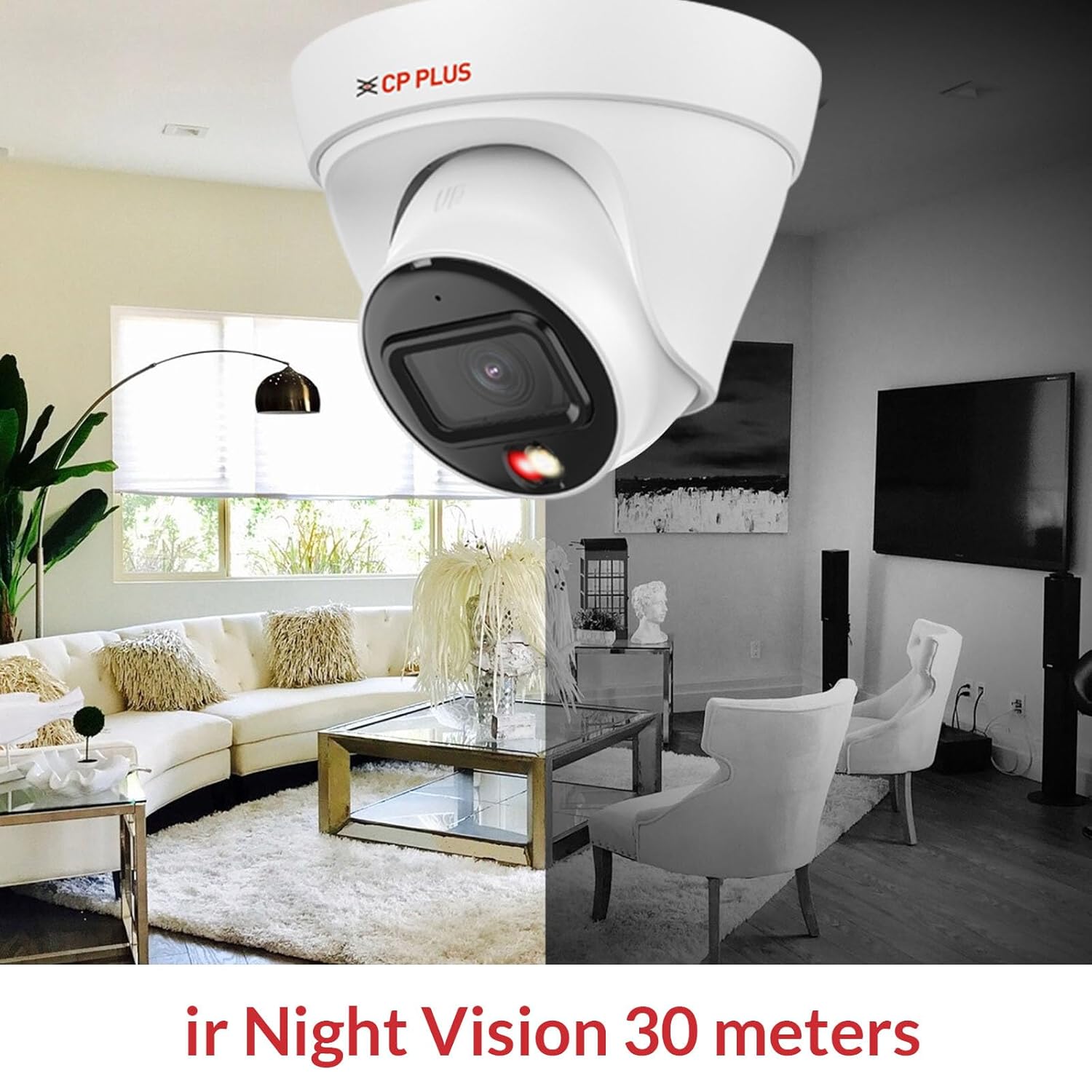

IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
