Home //IP Dome Camera // CP-UNC-DA41L3B-D-LQ 4MP Dual Light Dome Camera - 30Mtr.
CP-UNC-DA41L3B-D-LQ 4MP Dual Light Dome Camera - 30Mtr.(excl. of all taxes)
2 Reviews
CP PLUS
Check delivery
₹5,68718% GST will be applied at checkout
₹9,50040% Off34In-Stock
Available offers
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
Specifications
| Image Sensor | 1/2.8 |
| Effective Pixels | 2688 (H) × 1520 (V) |
| Minimum Illumination | 0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| RAM | 128 MB |
| ROM | 128 MB |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Close Focus Distance | 1.5 m |
| DORI Distance | 78.0 m (Detect), 31.2 m (Observe), 15.6 m (Recognize), 7.8 m (Identify) |
| Lens | 3.6mm fixed Lens |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| Day/Night | Auto(ICR)/Color/B/W |
| Angle of view | H: 78°, V: 42°, D: 92° |
| Warm Light | Warm Light Range of 30 Mtr. |
| Smart Illumination | Support |
| Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Resolution | 4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Stream Capability | Triple stream |
| Frame Rate | Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps |
| Video Format | PAL/NTSC |
| Audio | Built-in Mic |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, AAC |
| OSD | Camera title, Date & Time |
| SDK and API | Support |
| Mirror Function | Support |
| Browser | IE, Chrome, Firefox |
| Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| Power Consumption | Basic: 1.8 W (12 VDC); 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker) |
| Weatherproof Standard | IP67 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95%(RH), non-condensing |
| Dimension | 100.9 mm × 109.9 mm |
| Weight | 320g |
Product Details
1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters)
Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
Support Built-in Mic, Built-in speaker
3.6mm fixed Lens
WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

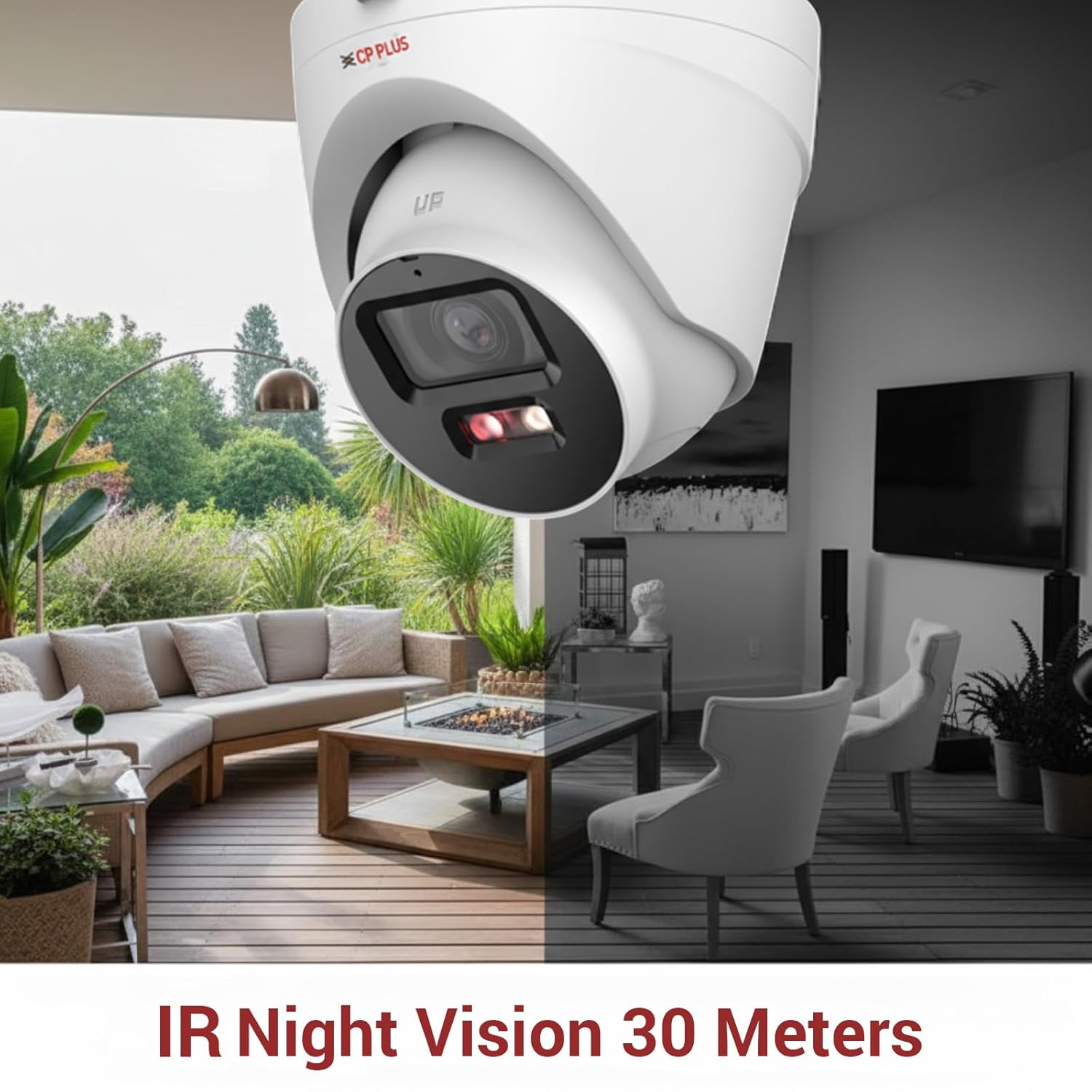

IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
