CP-UVR-0801E1-IC2 8Ch. 1080N Digital Video Recorder(excl. of all taxes)

2 Reviews

CP PLUS

Check delivery

₹3,64318% GST will be applied at checkout

₹5,90038% Off

In-Stock

Available offers

Special Price Get extra 37% off T&C

Bank Offer Flat ₹75 cashback on a minimum order value of ₹99

Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C

24x7 Support

Easy Return

100% Original

Make In India

Specifications

Processor	Embedded processor
Operating System	Embedded LINUX
IP Camera Input	8+2 channels, each channel up to 6MP
Two-way Talk	Reuse audio in/out, RCA
User Interface	GUI

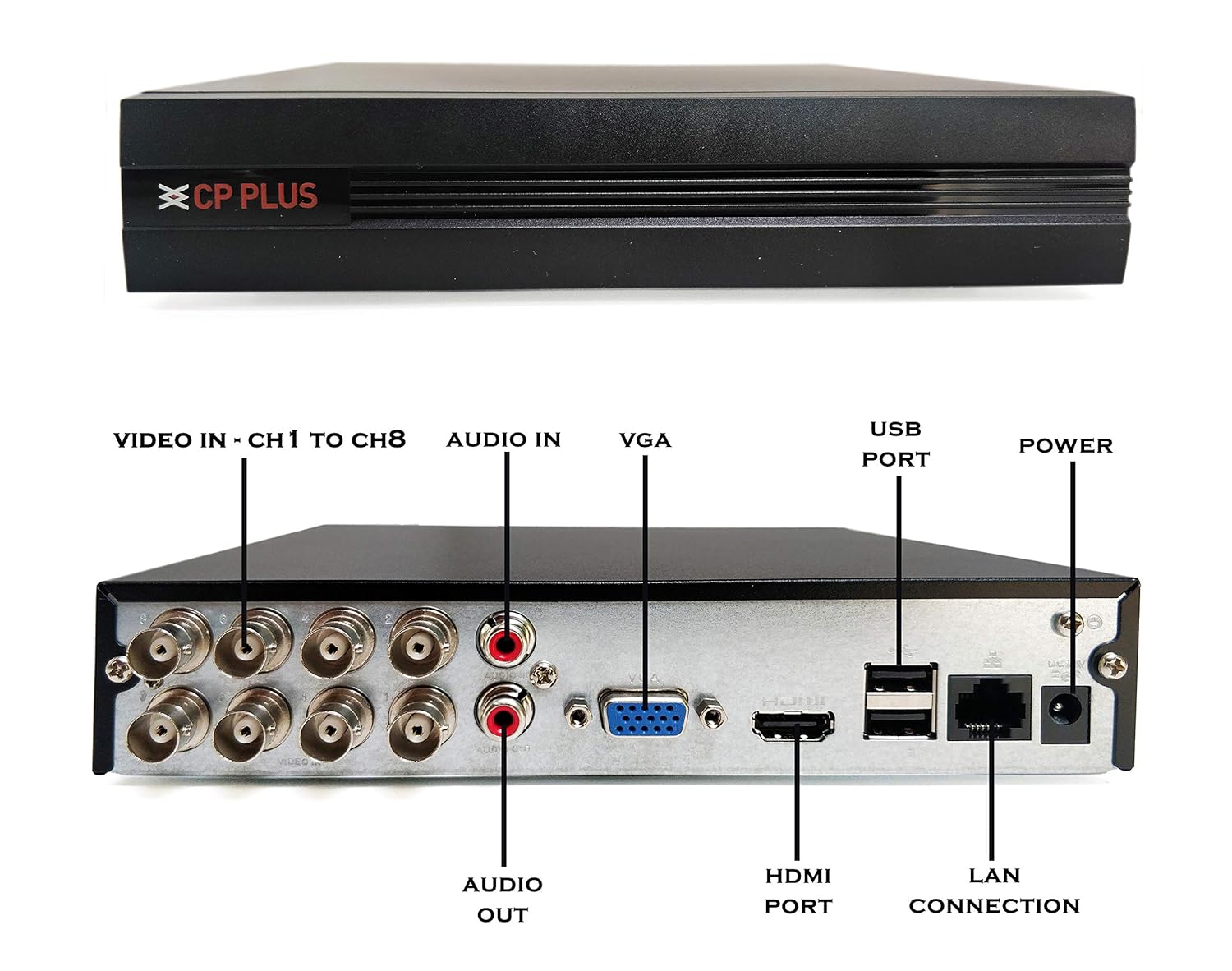

Video Output	1 HDMI, 1 VGA
Performance SMD Plus	4 Channels
Video Input	8 channel, BNC
AI Search SMD	Search by target classification (Human, Vehicle)
Video Recording	Main Stream: the 1st channel 1080N/720p(1 fps–25/30 fps), others 1080N/720p(1 fps–15 fps); 960H/D1/CIF/(1 fps–25/30 fps) Sub stream: 8-channel: CIF (1 fps–7 fps)
Resolution	1080N; 720P; 960H; D1; CIF
Video Compression	H.265+/H.264+/H.264
Video Display Split	1/4/8/9
Encode Strategy	AI Instastream, Instastream
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Audio Compression	G.711A, G.711U, PCM
Audio Output	1 channel, RCA
Audio Input	1 channel, RCA
Motion Detection	Support
Audio Sample Rate 8KHz, 16 bit Per Channel	Audio Sample Rate 8KHz, 16 bit Per Channel
Video Loss	Support
Audio Bit Rate	64Kbps Per Channel
Bit Rate	32 kbps–4096 kbps per channel
Smart Phone	iPhone, iPad, Android Phone
Hard Disk	1 SATA port, up to 6TB
Camera Blank	Support
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode	USB Device/Network
Playback	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom
Max User Account	128 users
Record Interval	1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet	1 RJ-45 port (100Mbps)
Interface Ports	2 USB Ports (USB 2.0)
Protocols	HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn cloud; IP Search, ONVIF 16.12, CGI Conformant
Power Supply	DC12V/1.5A
Power Consumption	<7W (without HDD)
Operating Temperature	-10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% (RH)
Storage Temperature	-20 °C to +70 °C (–4 °F to +158 °F), 0%–90% (RH)
Dimension	198 mm × 202.9 mm × 41.5 mm
Weight	0.62kg (without HDD)

Product Details

Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps incoming bandwidth
Supports Full-channel AI Instastream
Instastream/H.265 dual-stream video compression
Up to 4 channels video stream (analog channel) SMD Plus.
Support 1 SATA HDD up to 6TB, 2 USB Ports
1 HDMI / 1 VGA Simultaneous Video Output
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro Lite
