CP-UVR-0404E1-I 4Ch. 1080N Digital Video Recorder(excl. of all taxes)

2 Reviews

CP PLUS

Check delivery

₹2,68618% GST will be applied at checkout

₹5,00046% Off

In-Stock

Available offers

Special Price Get extra 37% off T&C

Bank Offer Flat ₹75 cashback on a minimum order value of ₹99

Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C

24x7 Support

Easy Return

100% Original

Make In India

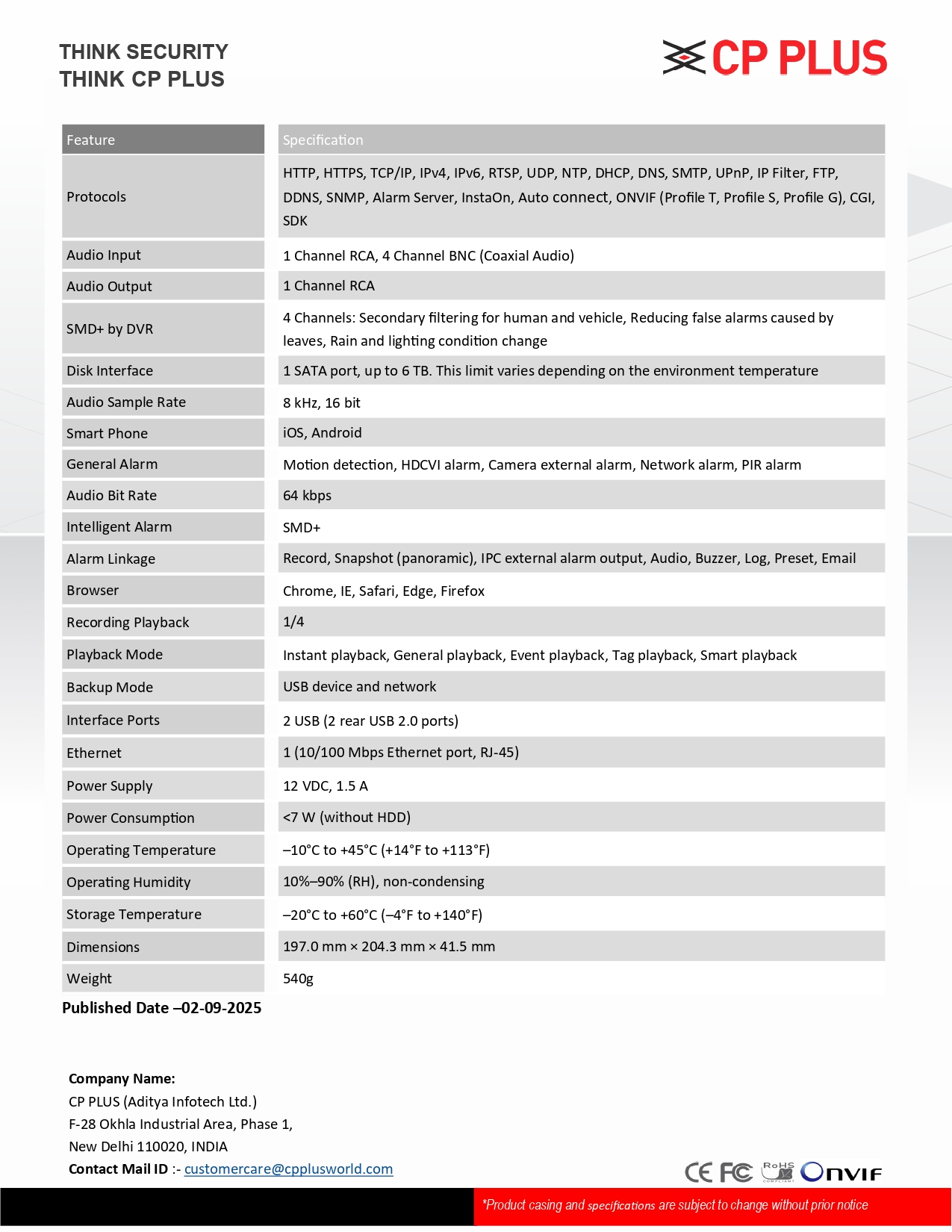

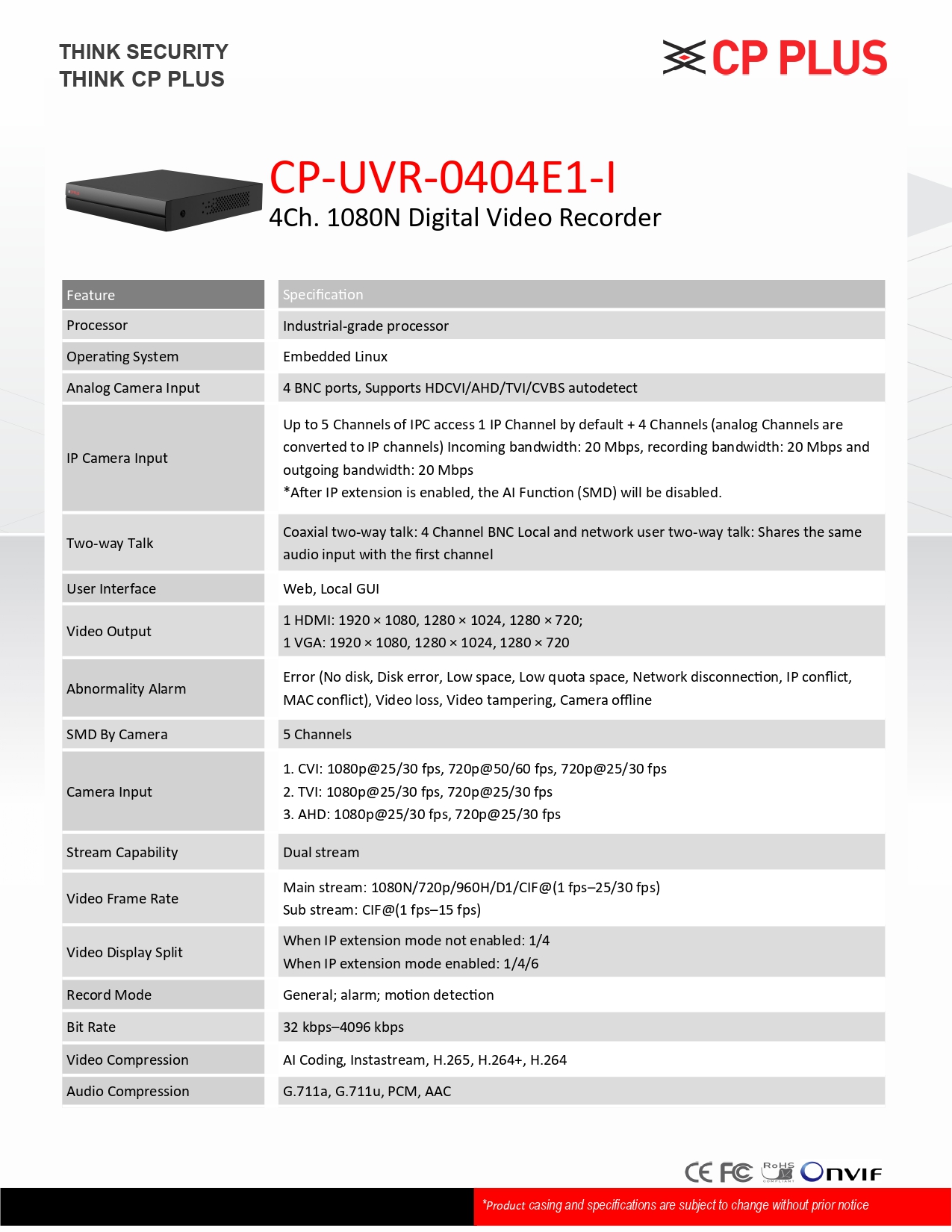

Specifications

Processor	Industrial-grade processor
Operating System	Embedded Linux
Analog Camera Input	4 BNC ports, Supports HDCVI/AHD/TVI/CVBS autodetect
IP Camera Input	Up to 5 Channels of IPC access 1 IP Channel by default + 4 Channels (analog Channels are converted to IP channels) Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled.
Two-way Talk	Coaxial two-way talk: 4 Channel BNC Local and network user two-way talk: Shares the same audio input with the first channel
User Interface	Web, Local GUI
Video Output	1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Abnormality Alarm	Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline
SMD By Camera	4 Channels
Camera Input	1. CVI: 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps 2. TVI: 1080p@25/30 fps, 720p@25/30 fps 3. AHD: 1080p@25/30 fps, 720p@25/30 fps
stream Capability	Dual stream
Video Frame Rate	Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–15 fps)
Video Display Split	When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6
Bit Rate	32 kbps–4096 kbps
Video Compression	AI Coding, Instastream, H.265, H.264+, H.264
Protocols	HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto connect, ONVIF (Profile T, Profile S, Profile G), CGI, SDK
Audio Input	1 Channel RCA, 4 Channel BNC (Coaxial Audio)
Disk Interface	1 SATA port, up to 6 TB. This limit varies depending on the environment temperature
Smart Phone	iOS, Android
Browser	Chrome, IE, Safari, Edge, Firefox
Recording Playback	1/4
Playback Mode	Instant playback, General playback, Event playback, Tag playback, Smart playback
Backup Mode	USB device and network
Interface Ports	2 USB (2 rear USB 2.0 ports)
Ethernet	1 (10/100 Mbps Ethernet port, RJ-45)
Power Supply	12 VDC, 1.5
Power Consumption	<7 W (without HDD)
Operating Temperature	–10°C to +45°C (+14°F to +113°F)
Operating Humidity	10%–90% (RH), non-condensing
Storage Temperature	–10°C to +45°C (+14°F to +113°F)
Dimensions	197.0 mm × 204.3 mm × 41.5 mm

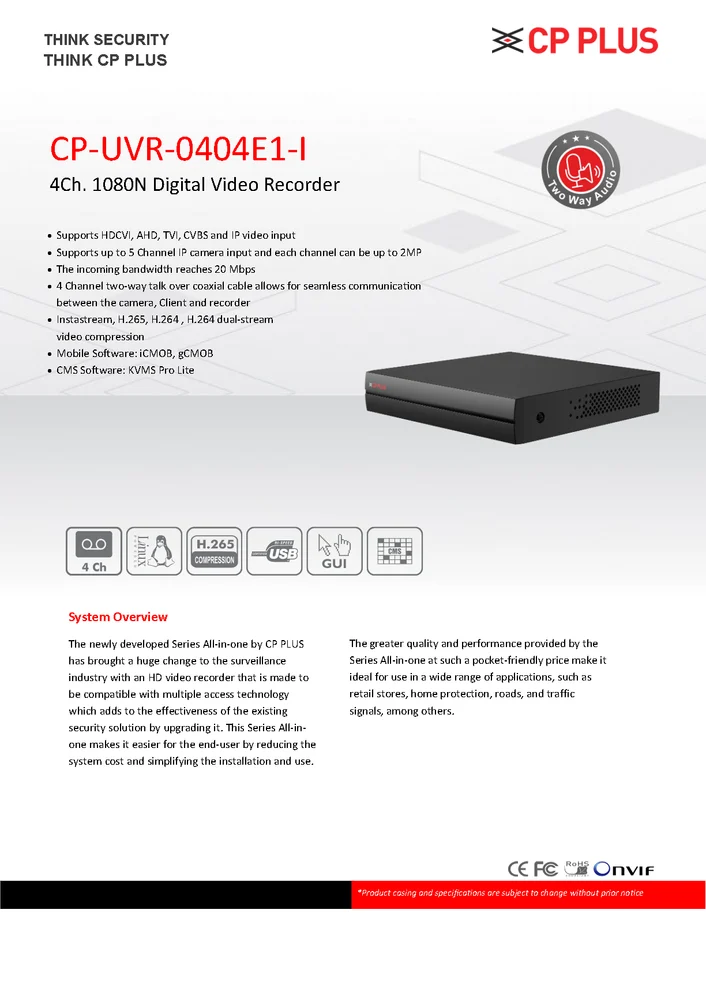

Product Details

Supports HDCVI, AHD, TVI, CVBS and IP video input
Supports up to 5 Channel IP camera input and each channel can be up to 2MP
The incoming bandwidth reaches 20 Mbps
4 Channel two-way talk over coaxial cable allows for seamless communication between the camera, Client and recorder
Instastream, H.265, H.264 , H.264 dual-stream video compression
Mobile Software: iCMOB, gCMOBV
