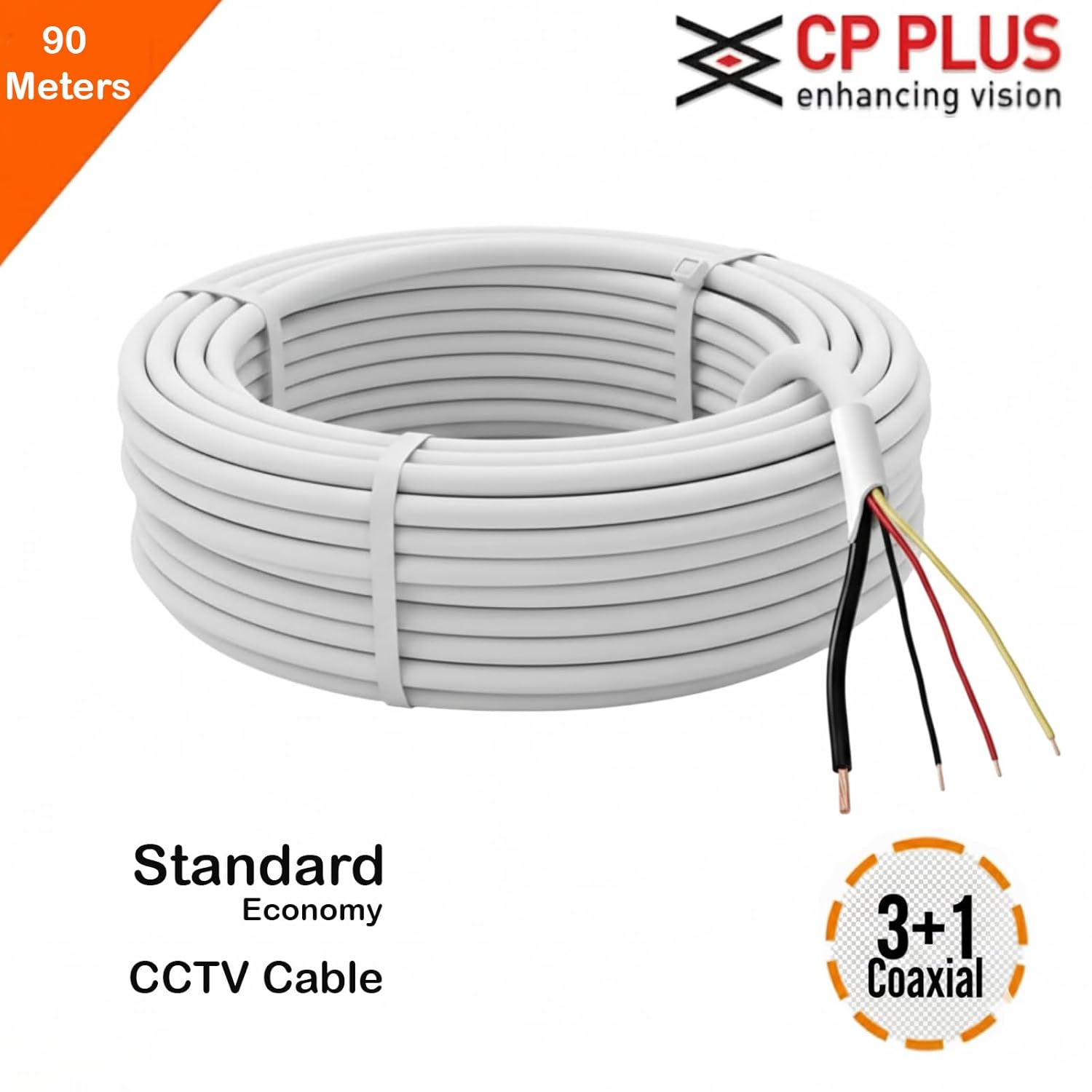

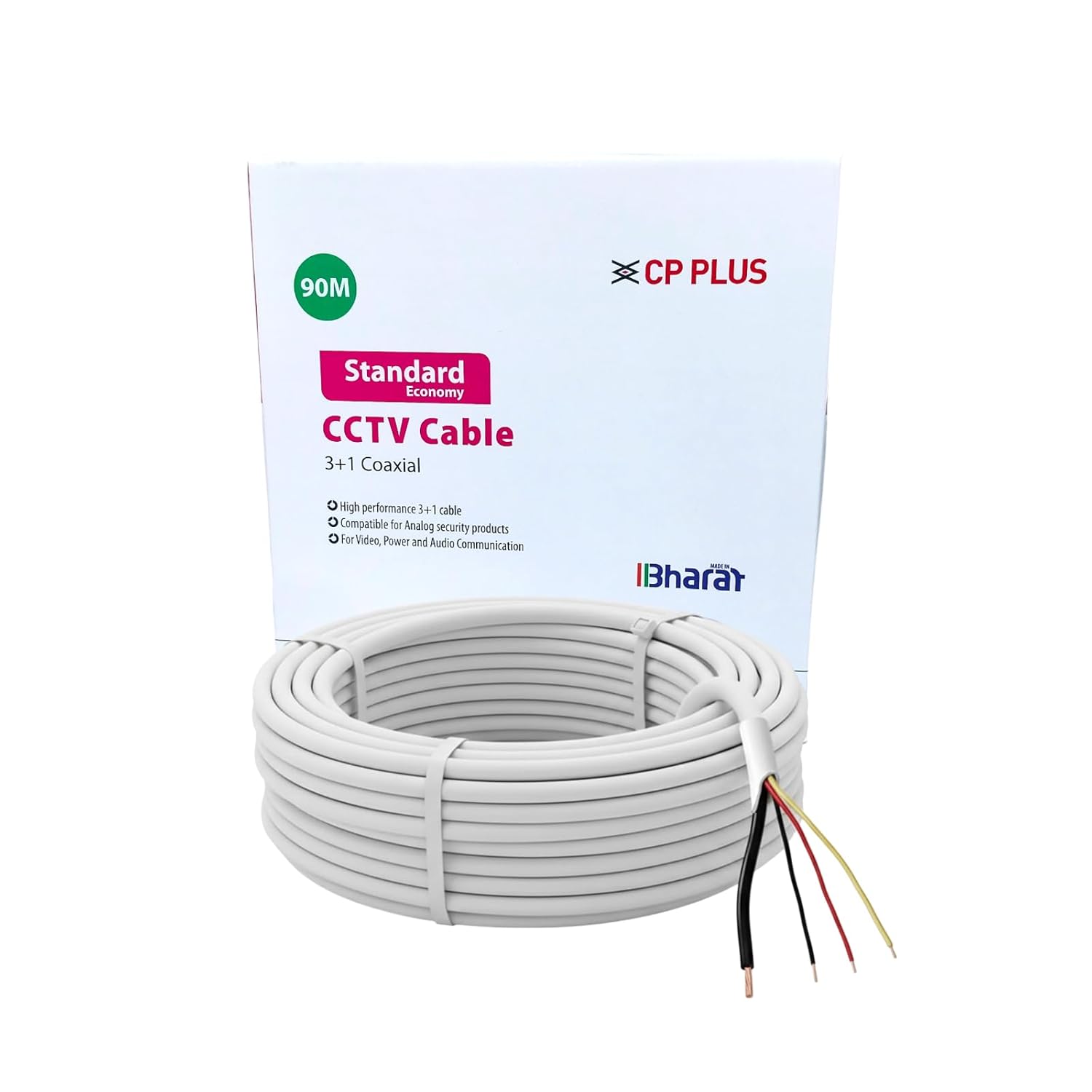

CP-ECC-90R 3+1 CCTV Cable(excl. of all taxes)
2 Reviews
CP PLUS
Check delivery
₹1,37518% GST will be applied at checkout
₹3,20057% Off145In-Stock
Available offers
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
Specifications
| Conduct Type | Stranded Annealed Bare Copper Conductor |
| No/Size of Wire | 14/0.10± 0.010mm |
| Insulation | PVC |
| No of Core | Three |
| Colour Code | Red, Yellow & Grey |
| Core O.D | 1.35±0.10mm |
| Conductor Type | Solid Annealed Bare Copper Conductor |
| No/Size of Wire Video Core | 01/0.60± 0.015mm |
| Video Core Insulation | HDPE |
| No of Video Core | One |
| Colour Video Code | Natural |
| Shielded | Al-Mylar |
| Braiding | CCA braiding (48 wire/0.12 ± 0.01mm) |
| Video Core Jacketing | HDPE |
| Colour of Jacket | Black |
| Video Core OD | 2.50 ±0.20mm |
| Material PVC | PVC |
| Colour of Jacketing | White |
| Thickness of Outer Jacket | 0.65 mm (Nom.) |
| Outer Dia. | 5.70 ± 0.30mm |
| Sequential Marking | Every Meter |
| Standard Length | 90 Mtrs |
| Conductor Resistance (DC) of solid | 65Ω/km @20°C Max |
| Conductor Resistance (DC) of Stranded | 175Ω/km @20°C Max |
| T.S in PVC Jacket | 12.5N/ Sqmm (Min) |
| Elongation in PVC Jacket | 150% Minimum |
Product Details
Solid Annealed Bare Copper Conductor
Heavily Braided with HDPE Insulation
90 Mtr. Standard Cable Length
