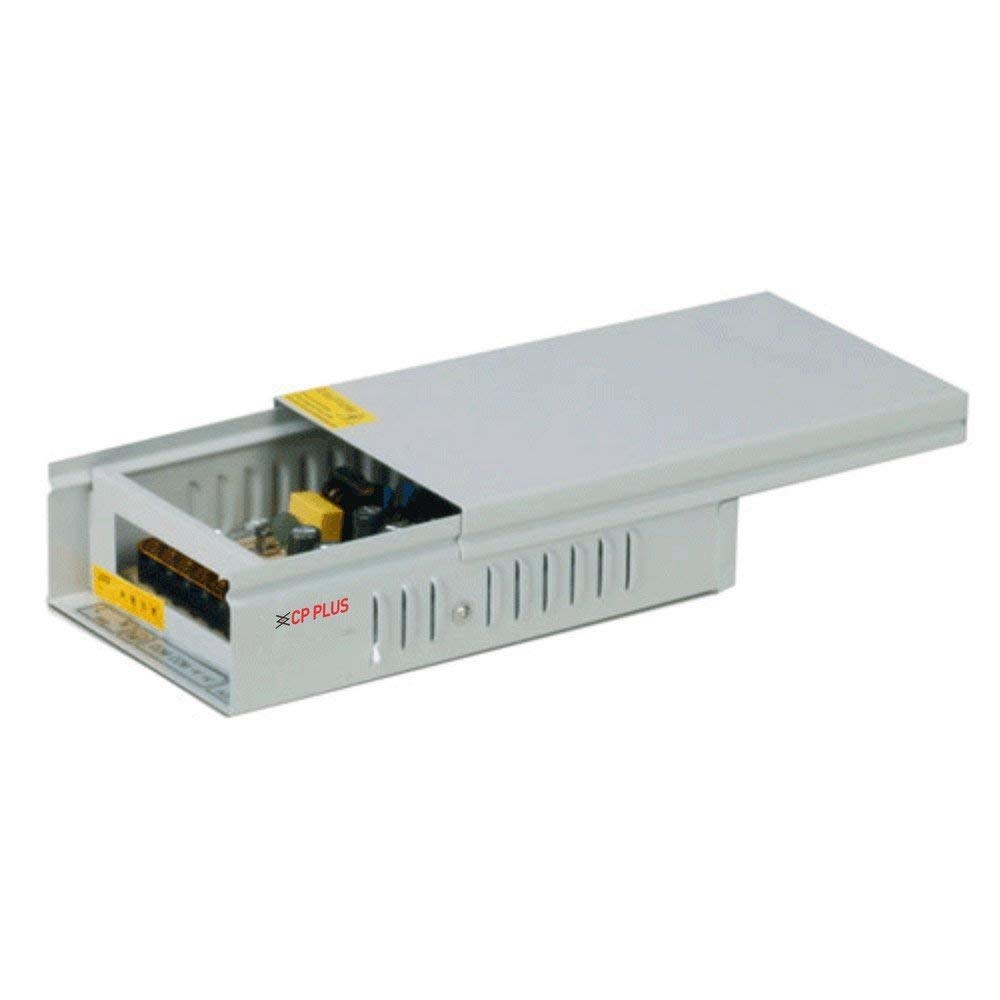

Home //CCTV Power Supply // CP-DPS-MD100P-12D Metal Case SMPS Power Supply (Premium Series)
CP-DPS-MD100P-12D Metal Case SMPS Power Supply (Premium Series)(excl. of all taxes)
2 Reviews
CP PLUS
Check delivery
₹68018% GST will be applied at checkout
₹2,15068% Off32In-Stock
Available offers
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
Specifications
| Input voltage | 190 ~ 250VAC |
| Input AC Frequency Range | 47 ~ 63Hz |
| Input Current (Typ.) | 3.0A/230VAC |
| Power Cord | 3 Pin (L, N & Earth) |
| Standby Power Consumption | ≤3.0W |
| Inrush Current (Typ.) | 40A@230VAC |
| Efficiency (Typ.) | 80% |
| Output voltage | 12V |
| Output Current | 0 ~ 10.0A |
| Rated Power | 120W |
| Ripple & Noise (max.) | ≤200mV |
| Line Regulation | 3% |
| Load Regulation | 5% |
| Power On Indicator | Support |
| Cable Compensation | Support, (trimmer pot) |
| No. of Output Ports | Single port |
| Over Voltage Protection | Support |
| Over Current Protection | Support |
| Short circuit protection | Support |
| Insulation Resistance | 100MΩ@500VDC |
| Operating Temperature | -10°C~+40°C |
| Operating Humidity | 20~90% RH non-condensing |
| Storage Temperature | -20°C~+85°C |
| Storage humidity | 10~95% RH |
| Dimension | 187mm x 103mm x 52mm |
| Wall mount option | Support |
Product Details
Wide range of Input voltage 190~250V AC
Higher power budget can add more cameras
Short circuit, over voltage and over current protection
Power on indicator
Voltage regulator pot for cable compensation
Built-in EMI filter to nullify interference
100% Full load burn-in test
Metal housing for uniform & quick heat dissipation
Wall mount option along with desktop
Screw type block terminals for easy installation
