Home //POE SWITCHES // CP-UNW-HPU8H2-96 10 Ports Switch with 8 PoE Ports & 2 Uplink Ports
CP-UNW-HPU8H2-96 10 Ports Switch with 8 PoE Ports & 2 Uplink Ports(excl. of all taxes)
2 Reviews
CP PLUS
Check delivery
₹1,59918% GST will be applied at checkout
₹3,90059% Off56In-Stock
Available offers
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
Specifications
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Switching Capacity | 1.6 Gbps |
| Packet Forwarding Rate | 1.488 Mbps |
| MAC Address List | 2K |
| Packet Buffer | 768 Kbit |
| DIP switch | Long Distance PoE: The transmission distance of ports 1–8 can reach up to 250 Mtr., The negotiation speed can be reduced to 10 MbpsLong Distance PoE: The transmission distance of ports 1–8 can reach up to 250 Mtr., The negotiation speed can be reduced to 10 MbpsLong Distance PoE: The transmission distance of ports 1–8 can reach up to 250 Mtr., The negotiation speed can be reduced to 10 Mbps |
| ESD Protection | Air discharge: 8KV, Contact discharge: 6KV |
| Lightning Protection | Common mode: 6KV |
| PoE Pin Assignment | 1/2+, 3/6- |
| Long Distance PoE Transmission | Support |
| Description of Function Slots | Port 1-8: 8 × RJ-45 10/100 Mbps (PoE), Port 9-10: 2 × RJ-45 10/100 Mbps (Uplink) |
| Jumbo Frame | 2048 Byte |
| PoE Power | Port 1-8≤30 W, total≤96 W |
| Power Supply | Built-in power supply:200-240 VAC, 50/60 Hz, Max. 1.5A |
| Power Consumption | Idling: 0.6W, Full load: 96W |
| Operating Temperature | –10°C to +45°C |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Storage Temperature | –40°C to +75°C |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Casing | Sheet Metal |
| Dimensions | 200mm × 139.9mm × 44mm |
| Weight | 610 g |
Product Details

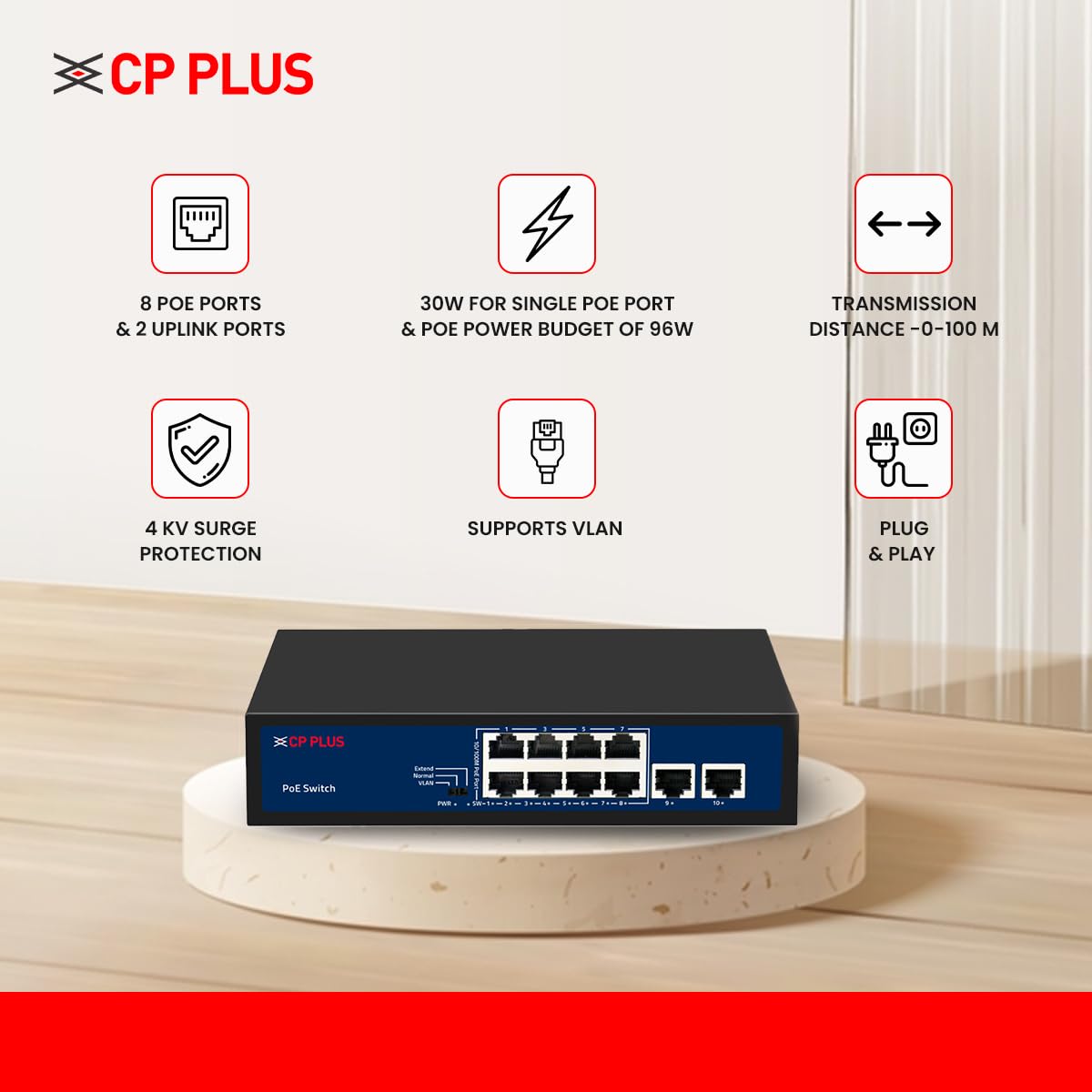

Port 1-8: 8 × RJ-45 10/100 Mbps (PoE), Port 9-10: 2 × RJ-45 10/100 Mbps (Uplink)
IEEE802.3, IEEE802.3u, IEEE802.3x
Transmission distance of ports 1–8 can reach up to 250 Mtr., Negotiation speed can be reduced to 10 Mbps

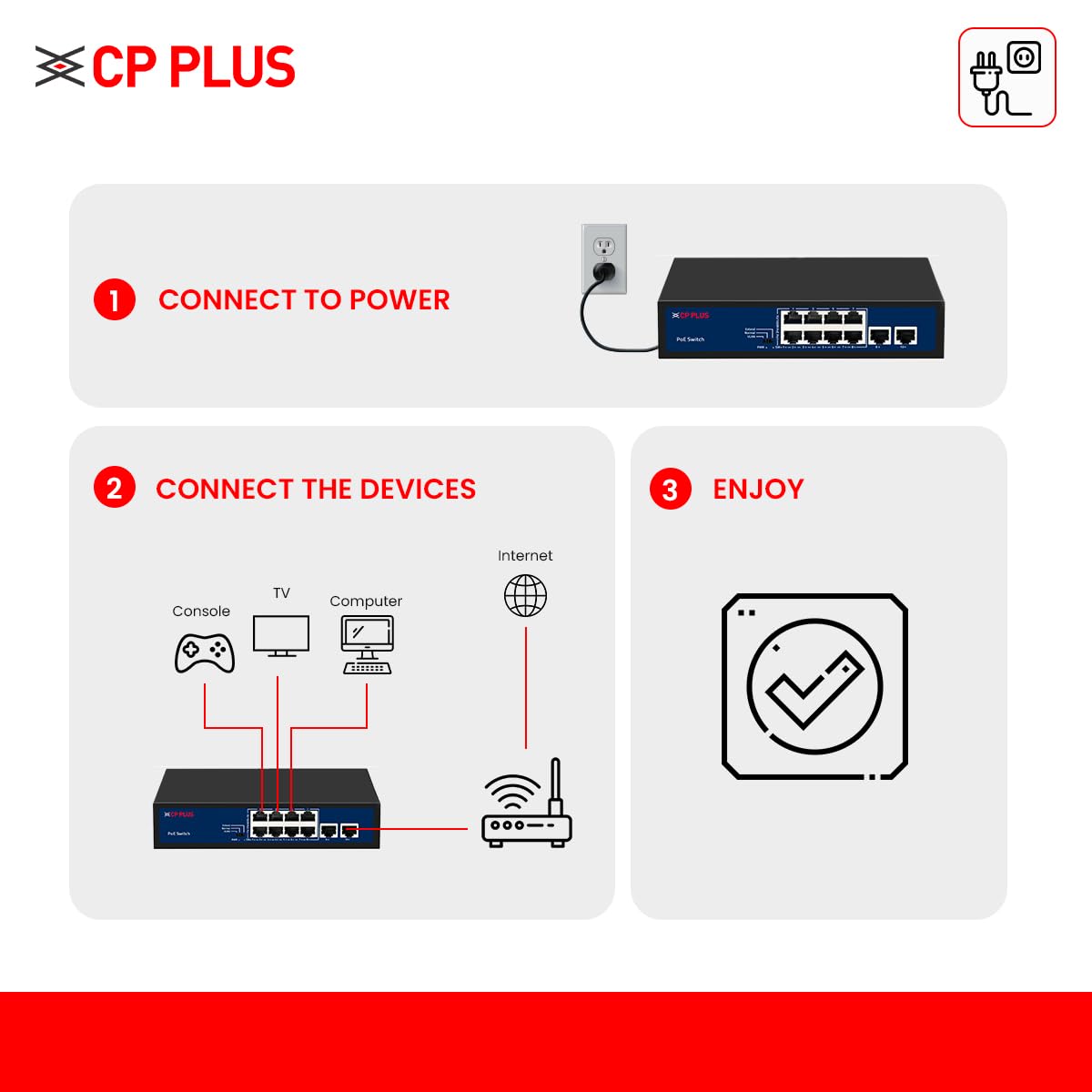

Easy and safe installation: wall-mounting, desktop, Plug-and-play
