Home //POE SWITCHES // CP-ANW-HP4H2-N65 4EP + 2E 10/100Mbps AI PoE Switch
Check delivery
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
| Network Port | PoE (1~3) :10/100Mbps PoE ports (RJ45) PoE (4) :10/100Mbps PoE port, BT port, Compatible uplink port (RJ45) LAN (1~2):10/100Mbps uplink port (RJ45) |
| Switch Capacity | Bandwidth 1.2 Gbps |
| PoE Standard | IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power over Ethernet |
| Transmission Distance | 100Mbps /10Mbps Adaptive MAX 250m |
| MAC Address List | 2K |
| Lightning Protection | 6KV, Per: IEC61000-4-5 |
| PoE Power Budget | 65W |
| Power Source | AC 180~240V Total ≤65W |
| Working Temp | -30°C ~60°C |
| Humidity | 10%~90% (Non-condensing) |
| Storage Temperature | -40°C ~70°C |
| Storage Humidity | 5%~90% (Non-condensing) |
| Dimension | 187mm(L) x 139mm(W) x 43mm(H) |

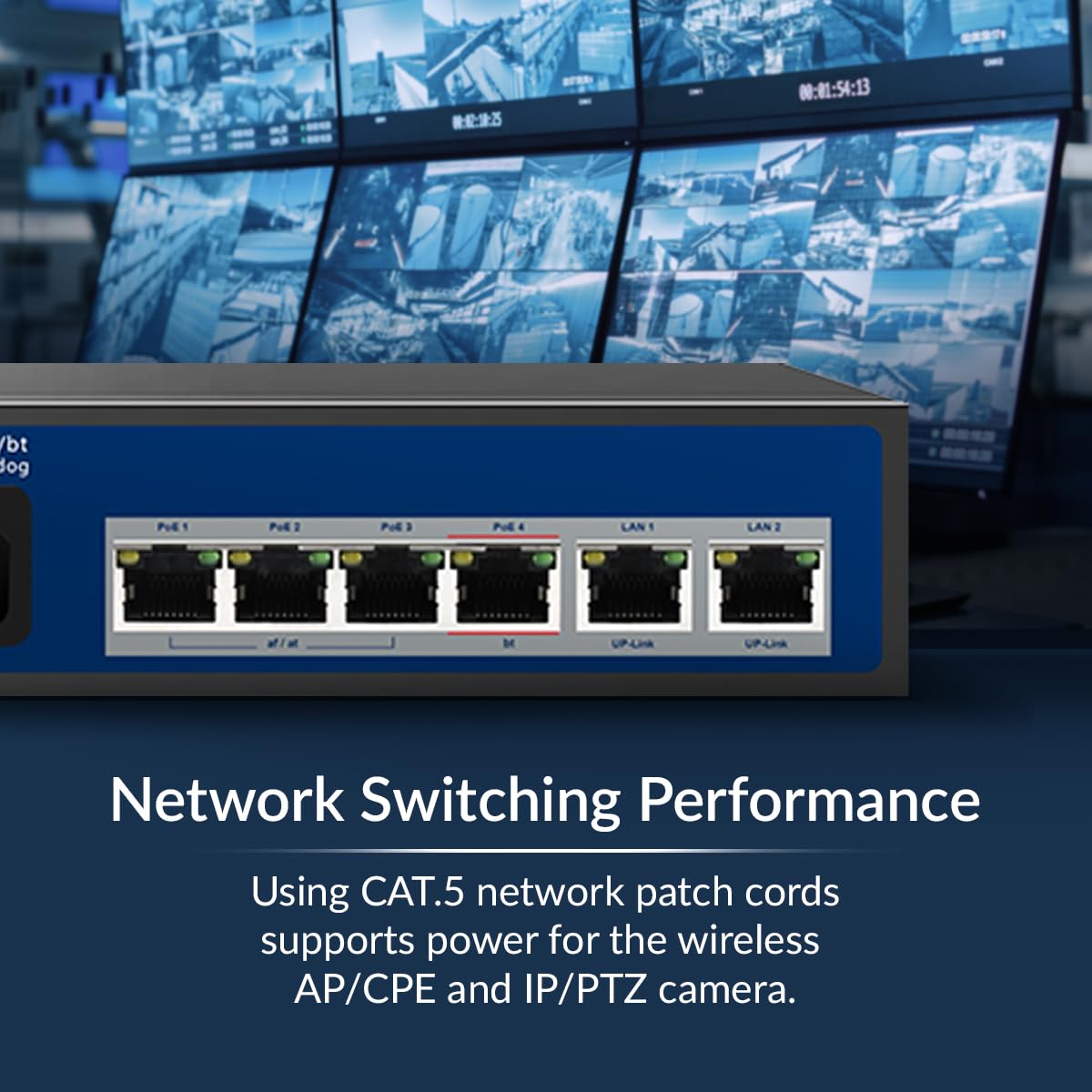

Using CAT.5 network patch cords support power for the wireless AP/CPE and IP/PTZ camera.
Networking standard: IEEE802.3af/at/bt.
PoE Watchdog AI Function: Detection front-end PoE cameras and PD, Automatic detection, Automatic restart

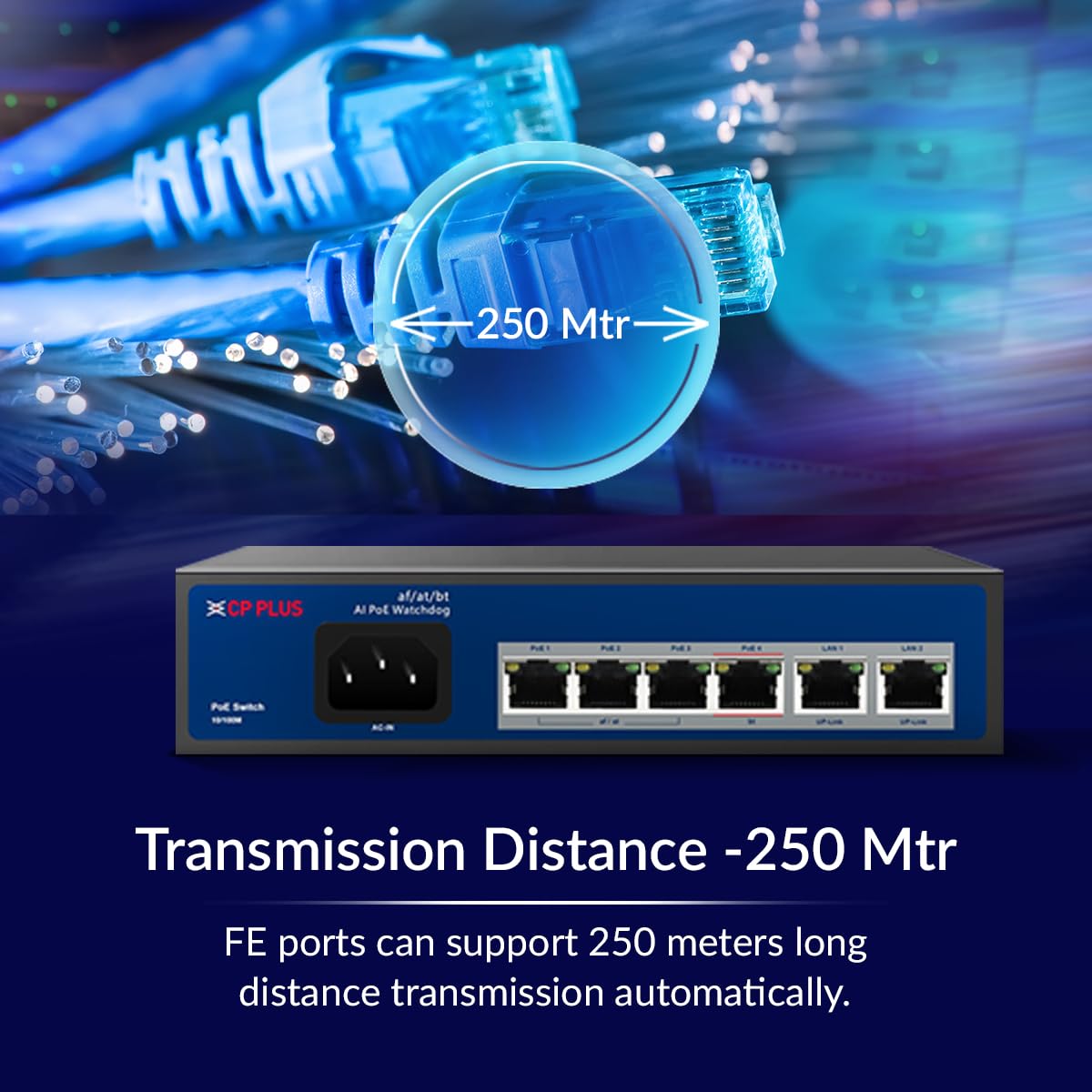

FE ports can support 250 meters long distance transmission automatically

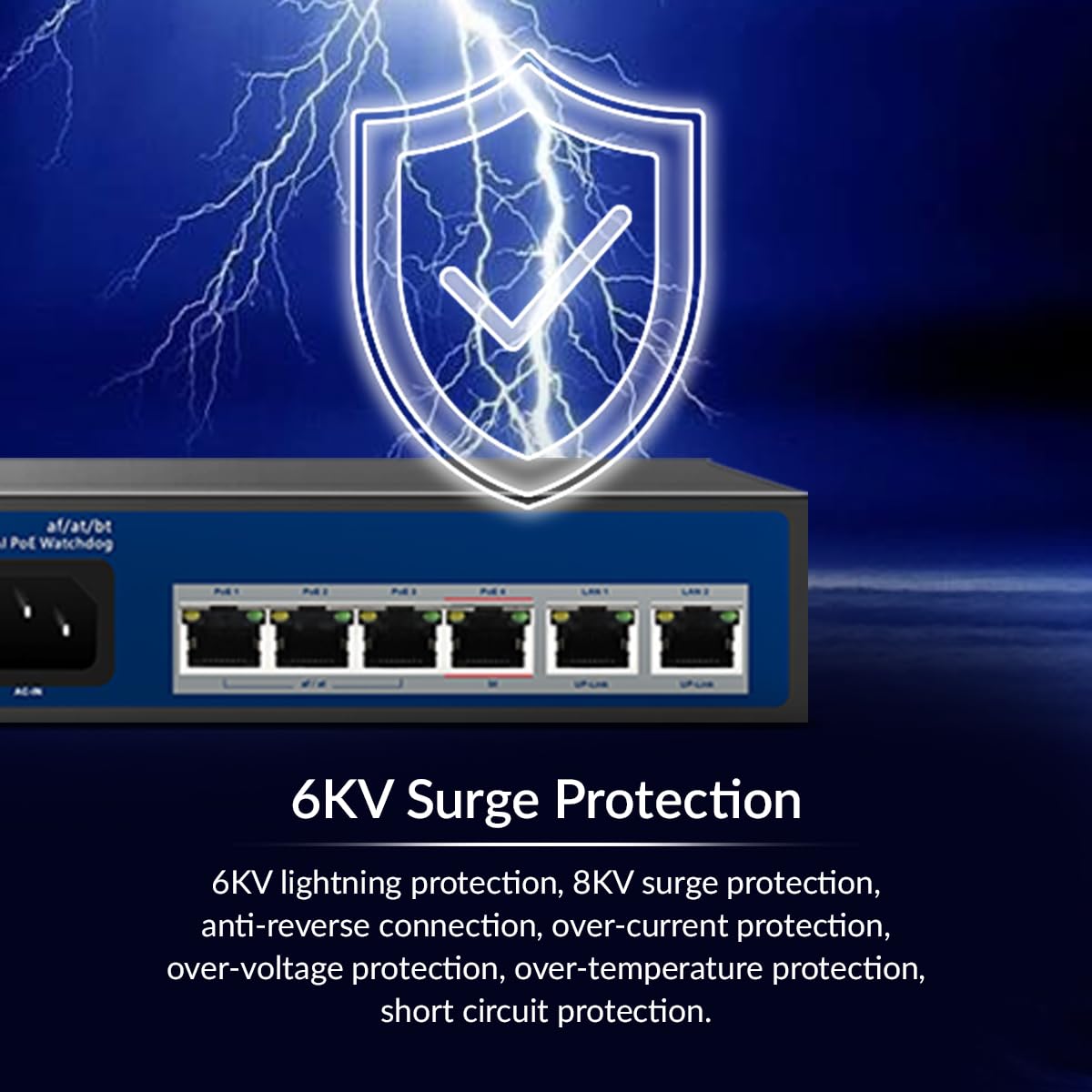

6KV lightning protection,8KV surge protection, anti-reverse connection, over-current protection, over-voltage protection, over-temperature protection, Short circuit protection
Support 60W PoE receiving power, free of power adapter & simplify power supply
The Max output power of the port is 60W, which is convenient for hi-power equipment
Zero configuration feature power supply is automatically supplied to the adaptive equipment
