Home //Intel Motherboards // ASUS ROG STRIX B760-I GAMING WIFI Intel® B760 Chipset DDR5 LGA 1700Socket Mini-ITX Intel B760 Chipset DDR5 Motherboard for Desktop
ASUS ROG STRIX B760-I GAMING WIFI Intel® B760 Chipset DDR5 LGA 1700Socket Mini-ITX Intel B760 Chipset DDR5 Motherboard for Desktop(excl. of all taxes)
0 Reviews
Asus
Check delivery
₹22,70218% GST will be applied at checkout
₹34,00033% Off20In-Stock
Available offers
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
Specifications
| Brand | Asus |
| Model | ROG STRIX B760-I GAMING WIFI |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B760 Chipset |
| Memory | 2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists) |
| Graphics | 1 x DisplayPort** 1 x HDMI®*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel® 14th & 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 14th & 13th & 12th Gen Processors M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3 * WiFi 6E 6GHz regulatory may vary between countries. |
| USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |

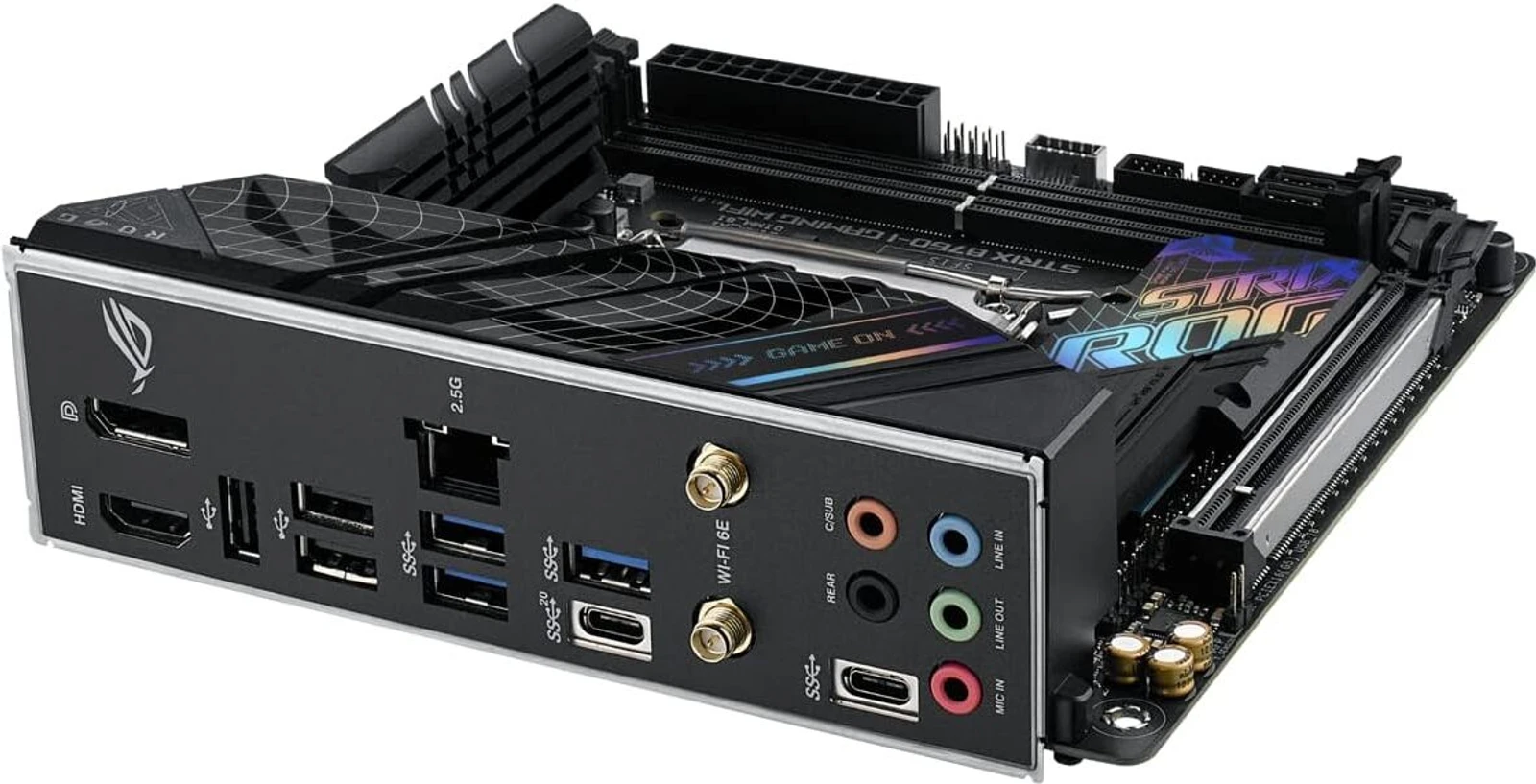

| Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI® port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet 5 x Audio jacks |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate ASUS EZ DIY -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 header |
| Software Features | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Performance And Power Saving Utility PC Cleaner DIGI+ VRM MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

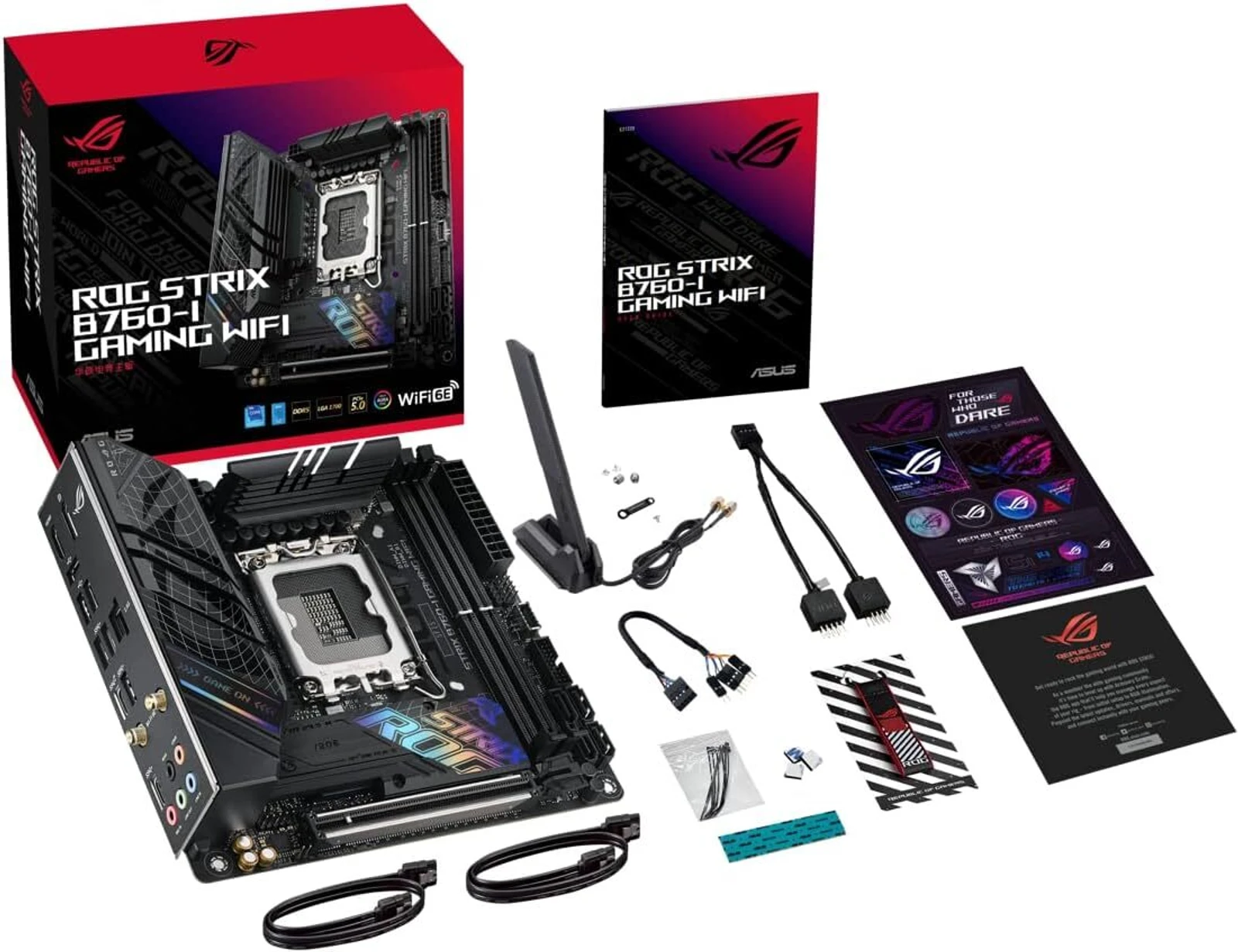

| Accessories | Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Documentation 1 x User manual |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Warranty | 3 Years (By The Service Centre) |
Product Details
Intel® B760 LGA 1700 mini-ITX motherboard with 8 + 1 power stages rated to 80A, DDR5 up to 7600 MT/s, PCIe 5.0 x16 SafeSlot, two PCIe 4.0 M.2 slots, WiFi 6E, 2.5G Ethernet, USB 3.2 Gen 2x2 Type-C®, ASUS Enhanced Memory Profiles (AEMP) II, Two-Way AI Noise Cancelation, and Aura Sync RGB lighting
Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors
Robust Power Solution: 8 + 1 power stages rated for 80A, ProCool power connector, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads, and the larger one integrated with the I/O cover for added surface area
Ample M.2 Support: Two PCIe 4.0 M.2 slots, one with a beefy heatsink, and the other strategically placed on the rear to save space
Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard
Abundant Connectivity: USB 3.2 Gen 2x2 Type-C® rear I/O port, seven additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™4
Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
DIY-Friendly Design: Pre-mounted I/O shield, M.2 Q-Latch, and Q-LED
Industry-leading Gaming Audio: S1220A codec with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
