New Arrival
Home //Intel Motherboards // Asus Prime H610M-CS D4 Motherboard for Intel 12th Gen Processors - LGA1700 Socket

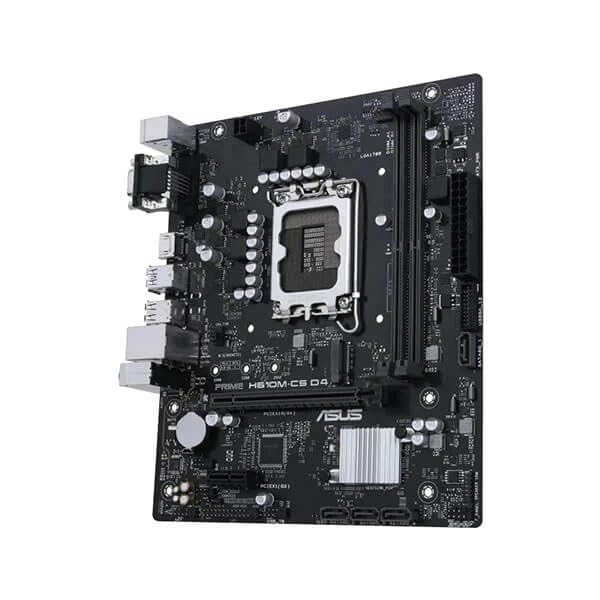

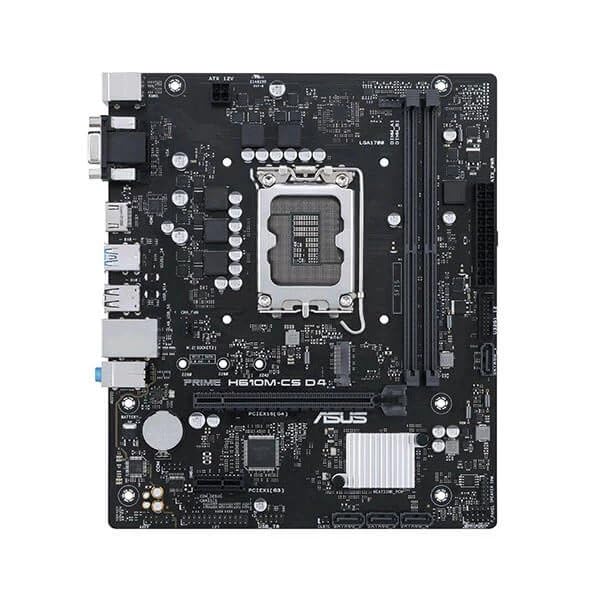

Asus Prime H610M-CS D4 Motherboard for Intel 12th Gen Processors - LGA1700 Socket(excl. of all taxes)
2 Reviews
Asus
Check delivery
₹5,60618% GST will be applied at checkout
₹12,50055% Off0Out of Stock
Available offers
Special Price Get extra 37% off T&C
Bank Offer Flat ₹75 cashback on a minimum order value of ₹99
Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C
24x7 Support
Easy Return
100% Original
Make In India
Specifications
| Brand | Asus |
| Model | PRIME H610M-CS |
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports up to Intel® 65W CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® H610 Chipset |
| Memory | 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel ® Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ . * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics | 1 x VGA port 1 x HDMI TM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMI TM 2.1. |
| Expansion Slots | Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel® H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
| Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 1Gb Ethernet |
| USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMI TM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design USBGuard |
| Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Warrenty | 3 Years (By The Service Centre) |
Product Details
About this item
Intel LGA 1700 socket:Ready for 12th Gen Intel processors
Comprehensive cooling: PCH heatsink
Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
5X Protection III: Multiple hardware safeguards for all-round protection
Luminous anti-moisture coating: Keep key components from moisture and corrosion
Ratings & Reviews
4.5
120 Ratings & 2 Reviews
5
84
4
18
3
10
2
5
1
4
5
ExcellentNice product, great value for money
Vivek KumarCertified Buyer, May 2024
4
Great ProductReally happy with the quality. Delivery was fast too.
Amit SinghCertified Buyer, April 2024
