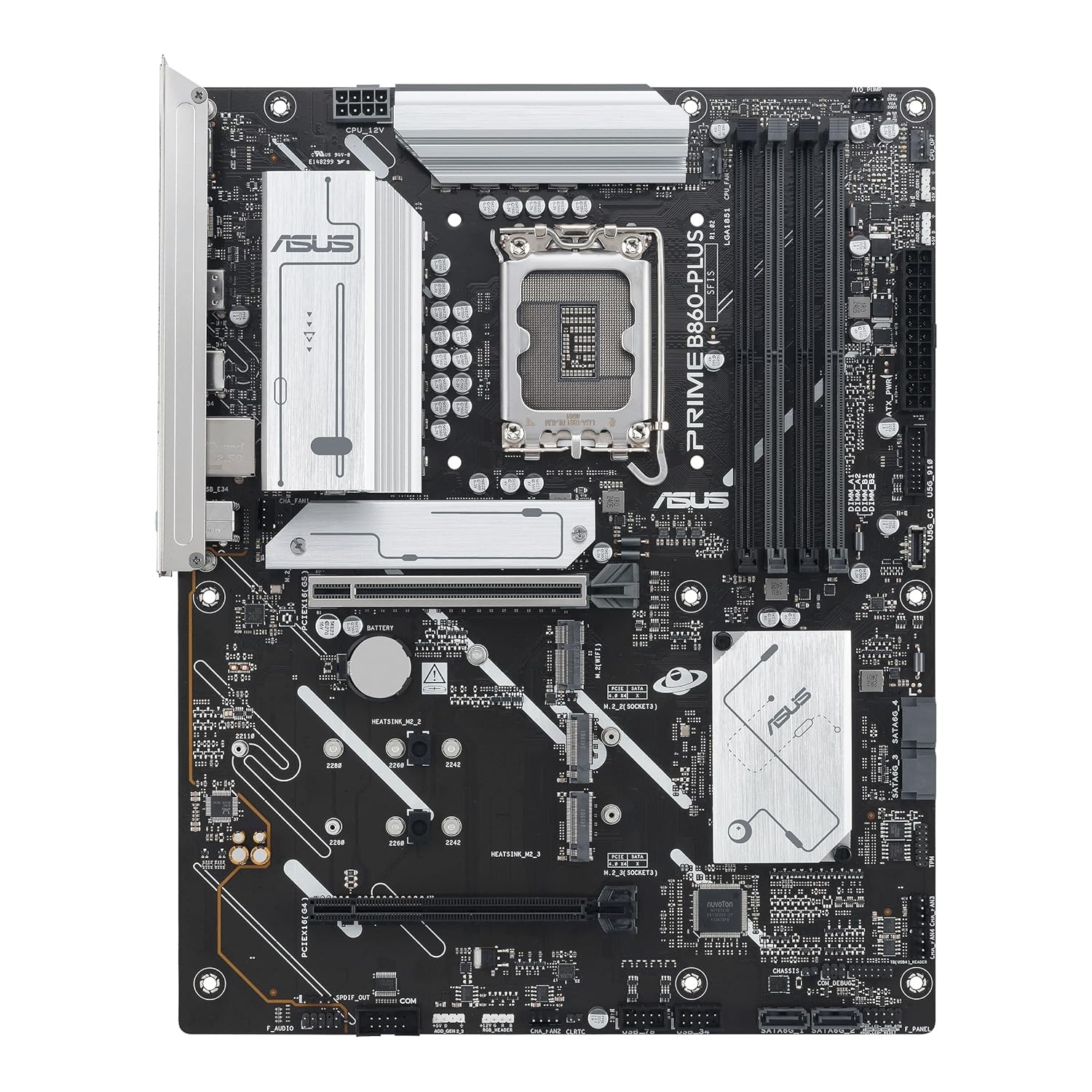

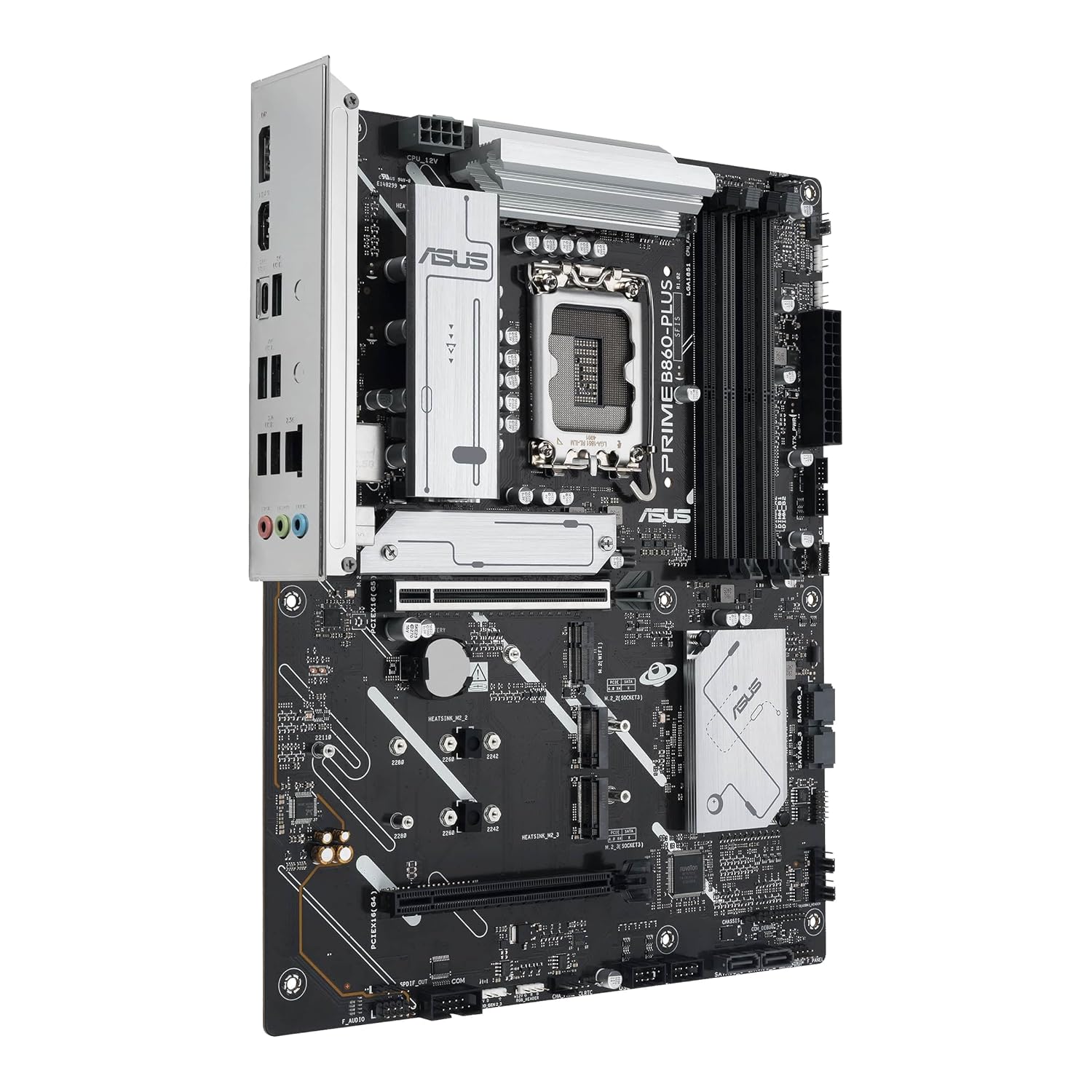

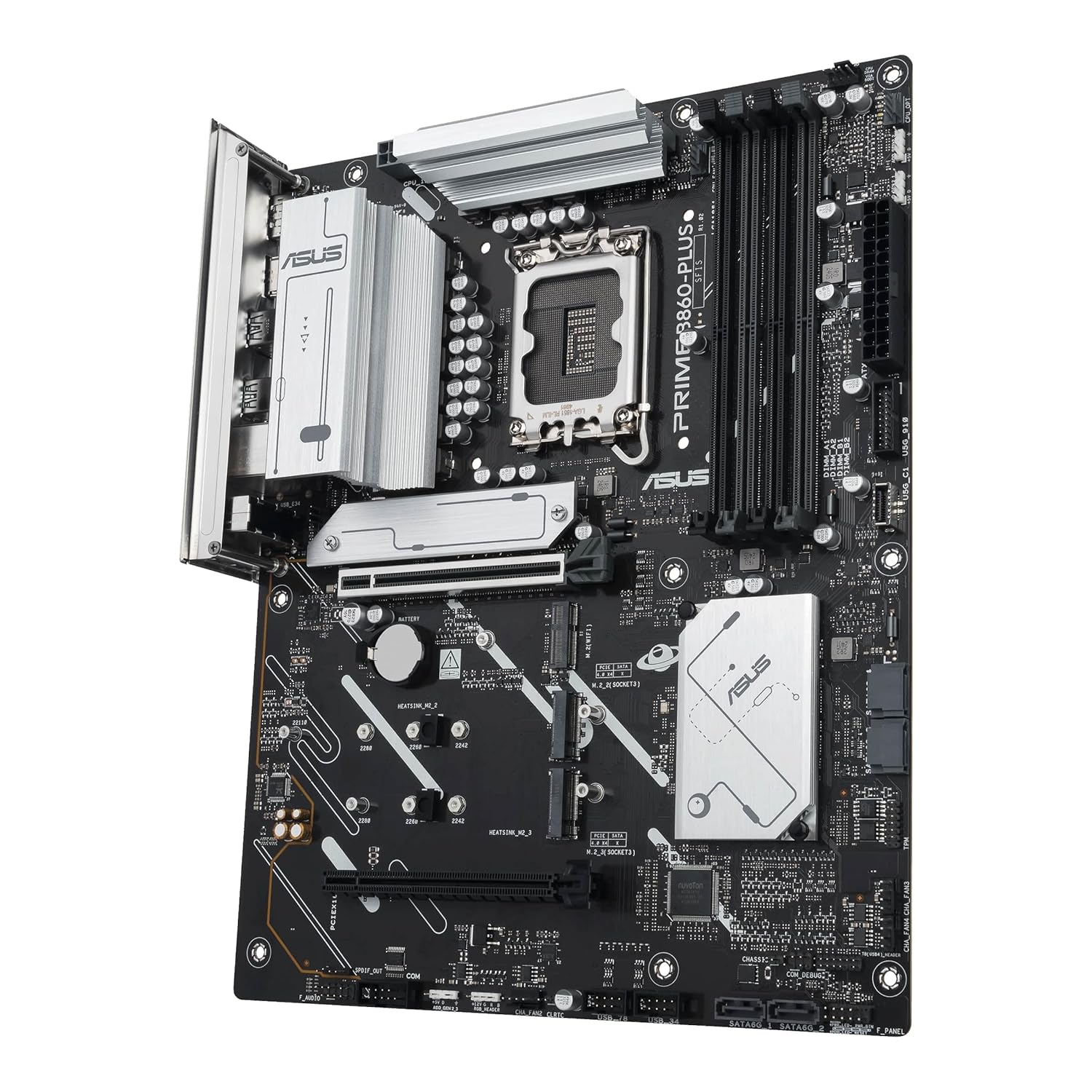

ASUS Prime B860-PLUS-CSM Motherboard Socket Intel LGA 1851 (Intel B860, ATX, DDR5 Memory, PCIe 5.0 x16 SafeSlot, 3X PCIe 4.0 M.2, HDMI, DisplayPort, USB 20Gbps, USB 5Gbps Type-C)(excl. of all taxes)

0 Reviews

Asus

Check delivery

₹17,79518% GST will be applied at checkout

₹28,00036% Off

In-Stock

Available offers

Special Price Get extra 37% off T&C

Bank Offer Flat ₹75 cashback on a minimum order value of ₹99

Bank Offer 5% cashback on Axis Bank Credit Card up to ₹750 T&C

24x7 Support

Easy Return

100% Original

Make In India

Specifications

Model	PRIME B860-PLUS-CSM
News & Updates	Please see the updated OS support requirements for the Intel® Core Ultra 200S series below: •Intel® Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel® Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility. , Please visit our GLOBAL website to check and download the latest updates.
CPU	Support Intel® Core™ Ultra Processors (Series 2) , LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI™ port* 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. ** Supports max. 4K@120Hz as specified in DisplayPort 1.4. * VGA resolution support depends on processors' or graphic cards' resolution. **** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel® Core™ Ultra Processors (Series 2)* 1 x PCIe 5.0 x16 slot Intel® B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
USB	Rear USB (Total 6 ports) 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (1 x USB Type-C®) 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

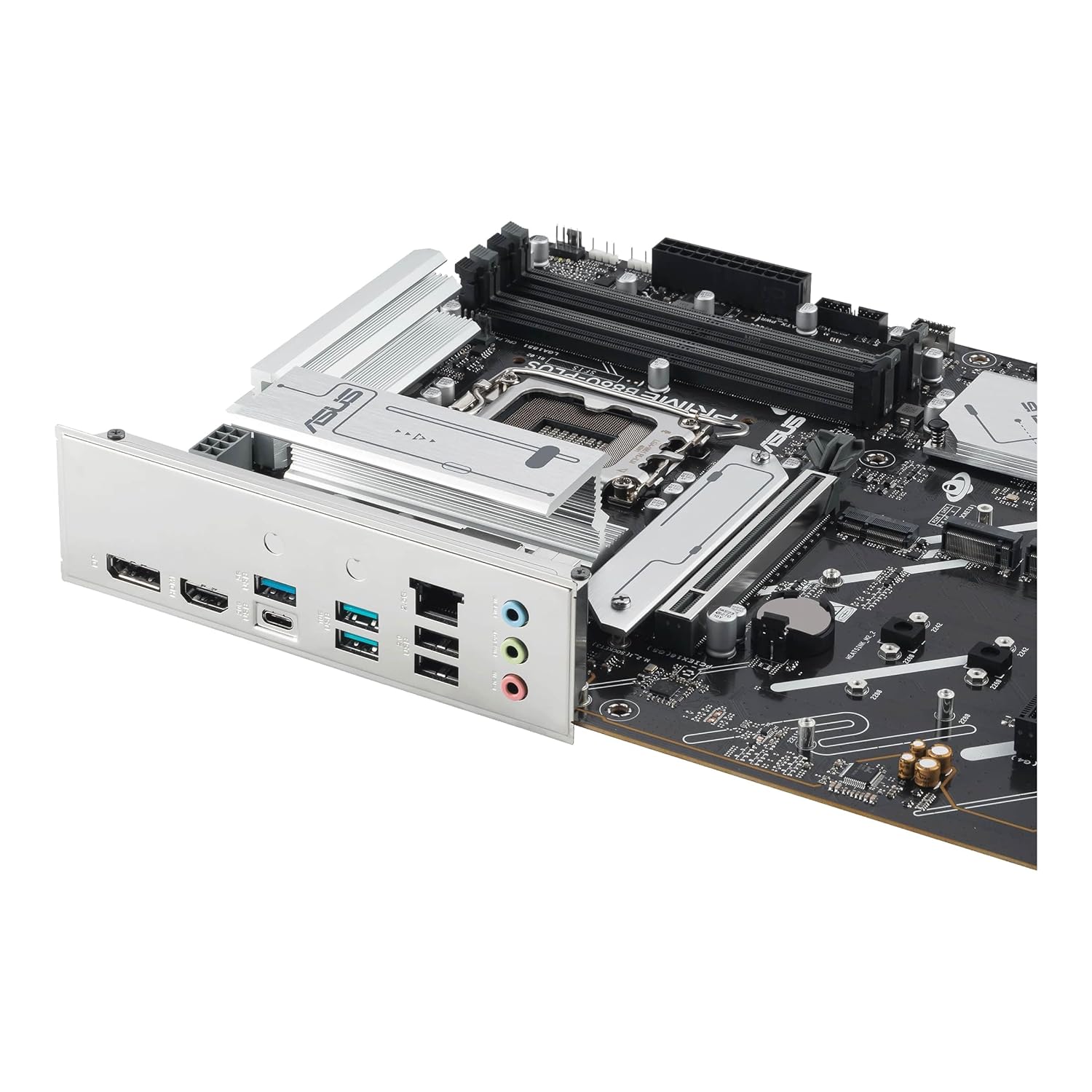

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
Special Features	ASUS 5X PROTECTION III -DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 rubber package 2 x Screw packages for M.2 SSD 1 x Screw package for M.2 Key E Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years (By The Service Centre)

Product Details

About this item

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Support Intel Core Ultra Processors (Series 2)
Enhanced Power Solution: 8+1+1+1 80A DrMOS power stages, 6-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
Latest M.2 Support: One onboard PCIe 5.0 M.2 slot equipped with one M.2 heatsink and two PCIe 4.0 M.2 slots
Ultrafast Connectivity: PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C port, front USB 5Gbps Type-C connector
